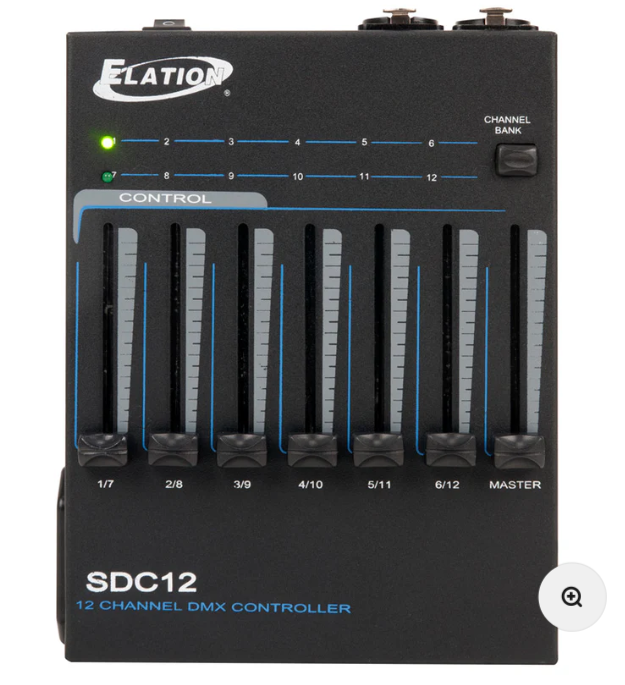

SDC12

FEATURES:

• 12 DMX Channels Faders

• Master Dimmer Fader

• Portable Handheld Or Wall Mountable

• Operates via 12VDC Power Supply (Included) Or

• 9VDC Battery (Not Included)

CONTROL / CONNECTIONS:

• DIP Switches To Set Starting DMX Channel

• 3pin 5pin DMX Outputs

• On/Off Switch

• LED Channel Bank Indicator

• DC 12V Power Supply Input

SIZE / WEIGHT:

• Length: 7.5” (191mm)

• Width: 5.9” (149mm)

• Height: 1.6” (41mm)

• Weight: 2.0 lbs. (0.9kg)

ELECTRICAL:

• DC 12V 500mA min OR 9V Battery (Not Included)

APPROVALS / RATINGS:

• CE Approved

• RoHs Compliant

INCLUDED ACCESSORIES:

• 12V Power Supply
