SC8200

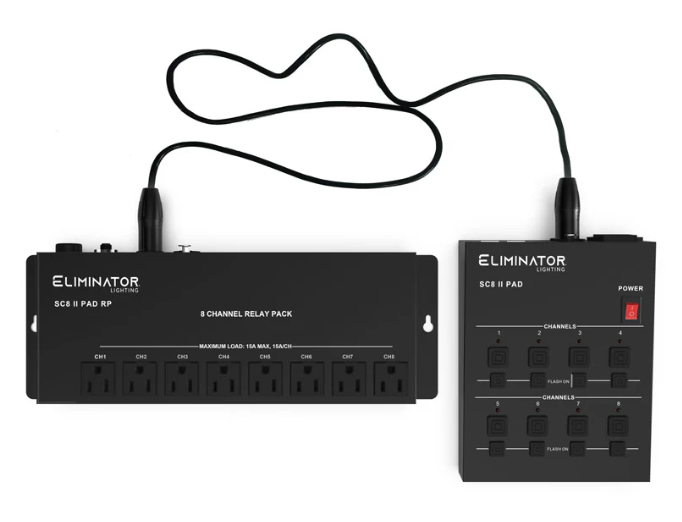

The Eliminator Lighting SC8 II Pad System in an analog On/Off controller with 8 channels and helps eliminate tangled cords and messy wires. The system includes: 1x SC8 II Pad controller, 1x SC8 II PAD RP relay Pack, 1x 25ft. 3-pin DMX Cable and 1x 4ft. IEC Power Cord.
Description
Specifications
System Includes:
• 1x SC8 II Pad controller
• 1x SC8 II PAD RP (Relay Pack)
• 1x 25ft. 3-pin DMX Cable
• 1x 4ft. (1.2M) IEC Power Cord
SC8 II Pad Features:
• 8x Individual channel On / Off toggle switches
• 8x individual flash switches
• AC100-240V 50/60Hz power input with IEC inlet
• 2x USB outputs to charge mobile devices
• Master On/Off Power Switch
• 3-pin XLR Data Output
• Rubber Feet for Desk Use
SC8 II Pad RP Features:
• 8x Edison Power Outlets
• 15 AMPS Total Power Capacity (Per Relay Pack)
• 3-pin XLR Data In/Out to connect to additional relay pack
• Circuit Breaker Reset
• M10 Mounting Thread for clamp
• Safety Loop
Electrical:
• Power Input:
SC8 II Pad: AC 100-240V, 50/60Hz
SC8 II Pad RP: AC 100-120V, 60Hz
• Power Consumption:
SC8 II Pad: AC 120V, 60Hz; 350mA; 20W
AC 230v, 50Hz; 180mA; 21W
SC8 II Pad RP: AC 100V, 60Hz; 15A; 1500W
AC 120V, 60Hz; 15A; 1800W
Dimensions:
• SC8 II Pad - 7.75” x 5.9” x 2.25” / 197x150x57.9mm
• SC8 II Pad RP - 13.5” x 5” x 2” / 343x128x53.2mm
Weight:
• 5 lbs. / 2.37 kgs.
Approvals / Ratings:
• CE
• cETLus (Control # 5014475)
• IP20
*Specifications are subject to change without notice.
