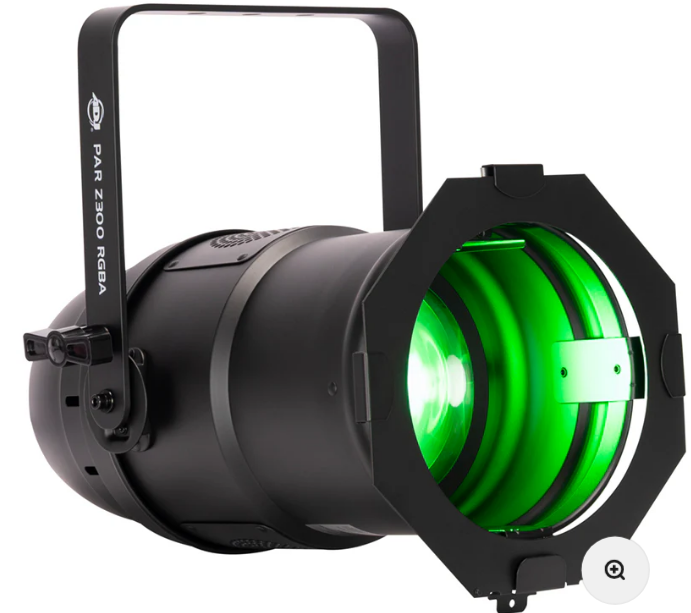

PAR843

• 300-Watt Quad RGBA C.O.B. LED (Chip On Board - Red, Green, Blue & Amber)

• Life expectancy: rated at 50,000 hrs.

• Manual Zoom: 9, 15, 20, 25, 30, 35 or 40-degrees

• Zoom Ration: 4.4:1

Photometrics:

• 5230 Lux (Zoomed In to 9°)

• 597 Lux (Zoomed Out to 40°)

• CRI: >90

Connections:

• DMX: 5-pin DMX In/Out

• With Wired Digital Communication Network

• Locking power In/Out connections

Control:

• DMX-512 and Aria X2 Wireless DMX / APP

• 9 DMX control modes: (4/5/9A/9B/13 & 15 Ch. modes)

• RDM and RDM Net Compatible

• Primary/Secondary, stand-alone mode

• On-board manual control mode

Features:

• Aria X2 Compatible

• Linear white color temperature control (2300K ~ 9900K)

• Color Temperature Presets (2300K ~ 9900K)

• 4-button DMX menu display on rear panel

• OLED display

• Adjustable latch to manually change beam angle

• Includes gel frame for diffusion filters (Diffusion filter sold separately)

• 64 Built-in Color Macros

• 13 Built-in Internal Programs

• Strobe Rate: 0.6Hz to 7.5Hz

• Selectable Refresh Rates: 900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz, 1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 10KHz, 15KHz, 20KHz, 25KHz

• Electronic Dimming: 0 - 100%

• 6 Dim Modes

• 4 Dim Curves

• On-board, color balance feature for each color (RGBA)

Electrical:

• Power Draw Total (All LED's @ Full On): 320W

• Power Consumption: 2.7A @ 120V/60Hz ; 1.5A @ 220V/50Hz

• Multi-voltage operation: AC 100-240V, 50/60Hz

• Daisy chain: 2 fixtures @ 120V; 4 fixtures @ 230V

• Fuse protected: 8A/250V

Ambient Temperature Range (For Use):

• -4° ~ 104°F (-20°C ~ 40°C)

Storage Temperature Range:

• -22° ~ 113°F (-30°C ~ 45°C)

Dimensions / Weight:

• Dimensions (LxWxH): 10.66” x 12.92” x 20.68” / 271 x 328 x 525mm

• Weight: 13.23 lbs. / 6kg.

IP Rating / Approvals:

• IP20

• CE & FCC

• ETL (Pending)

Included Accessories:

• Gel Frame

• UCIR24 Wireless Remote

• Power Cord

Specifications subject to change without notice.
