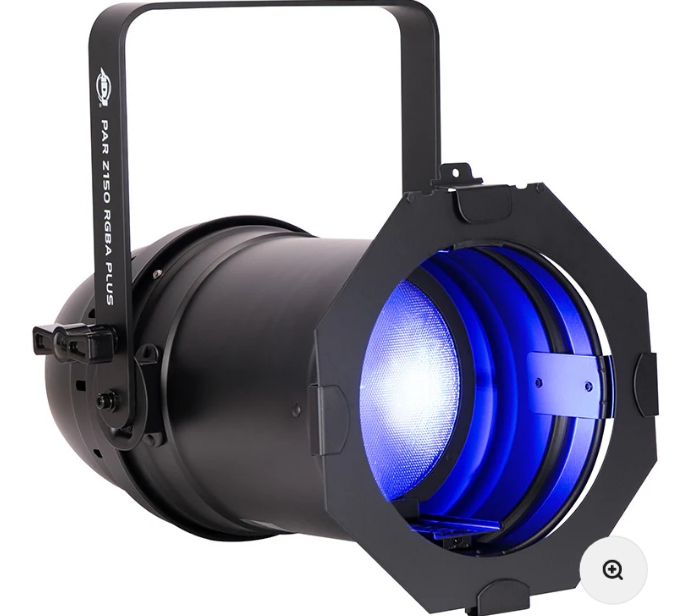

PAR168

• 150-Watt Quad RGBA C.O.B. LED (Chip On Board - Red, Green, Blue amp; Amber)

• Life expectancy: rated at 50,000 hrs.

• Manual Zoom: 7, 11.5, 16, 20.5 or 25-degrees

• Zoom Ration: 3.3:1

Photometrics:

• 1360 Lux (Zoomed In to 7°)

• 487 Lux (Zoomed Out to 25°)

• CRI: gt;90

Connections:

• DMX: 5-pin DMX In/Out

• With Wired Digital Communication Network

• Locking power In/Out connections

Control:

• DMX-512 and Aria X2 Wireless DMX / APP

• 6 DMX control modes: (4, 5, 9-A, 9-B, 13 amp; 15 modes)

• RDM and RDM Net Compatible

• Primary/Secondary, stand-alone mode

• On-board manual control mode

Features:

• Aria X2 wireless management system built-in

• Linear white color temperature control (2300K ~ 9900K)

• Color Temperature Presets (2300K ~ 9900K)

• 4-button DMX menu display on rear panel

• OLED display

• Adjustable latch to manually change beam angle

• Includes gel frame for diffusion filters (Diffusion filter sold separately)

• 64 Built-in Color Macros

• 13 Built-in Internal Programs

• Strobe Rate: 0.6Hz to 7.5Hz

• Refresh Rate: 3KHz

• Electronic Dimming: 0 - 100%

• 6 Dim Modes

• 4 Dim Curves

• On-board, color balance feature for each color (RGBA)

Electrical:

• Power Draw Total (All LED's @ Full On): 80W

• Power Consumption: 0.7A @ 120V/60Hz ; 0.4A @ 220V/50Hz

• Multi-voltage operation: AC 100-240V, 50/60Hz

• Daisy chain: 11 fixtures @ 120V; 20 fixtures @ 230V

• Fuse protected: 3A/250V

Battery:

• Rechargeable Lithium-ion

• Battery Capacity: 12,000mAh

• Battery Voltage: 22.2V

• Charge Time: 6 Hours (To Full)

• Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged

• Battery Cycles: 500

• Battery On/Off button

Ambient Temperature Range (For Use):

• -4° ~ 104°F (-20°C ~ 40°C)

Storage Temperature Range:

• -22° ~ 104°F (-30°C ~ 40°C)

Dimensions / Weight:

• Dimensions (LxWxH): 19.4” x 12.8” x 10.7” / 493 x 326 x 271mm

• Weight: 12.79 lbs. / 5.8kg.

IP Rating / Approvals:

• IP20

• CE amp; FCC

• ETL (Pending)

What's Included:

• Gel Frame

• UCIR24 Wireless Remote

• Power Cord

Specifications subject to change without notice.
