MDF300

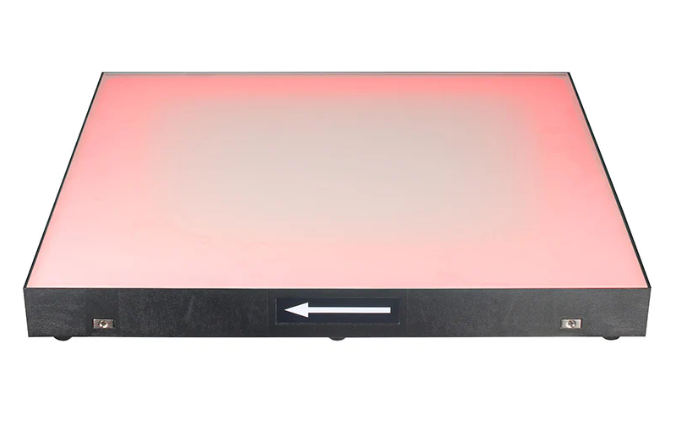

The MDF3 is a single, robust, lightweight, and modular LED dance floor panel illuminated by an arrangement of vibrant 3-in-1 RGB color mixing LEDs that is 600mm x 600mm (23.62” x 23.62”) in size.
Description
Specifications
Source
- Light Source: RGB 3-IN-1 LED
- Visual Angle: 160°
- Brightness: High Brightness
Control
- Input Signal: DMX512 (3-Pin XLR)
- Control Mode(s): DMX512 Console, Sound Control, Audio Control and Remote Control.
- DMX Channel Mode: 3, 5, 7, 10 Channel Mode
Physical
- Surface Material: Tempered Glass
- Base Material: ABS
Power | Power Consumption
- Input Voltage: DC 24V (Must be used with power ramp)
- Max Power Consumption: 15W
Unit Dimensions | Weight
- Single panel Dimensions (LxWxH): 23.62” x 23.62” x 2.76” / 600x600x70mm
- Single Panel Weight: 26.57 lbs./ 12.05 Kgs
Load Bearing Capacity
- Bearing Weight: 61.5 lbs./ft2 (300 kgs/m2)
Approvals
- cETLus Certified (Conforms to UL Std. UL 1573,)
- CSA Certified to Std. CSA C22.2 No.166.
- CE Compliant
Operating / Storage Temps
- Operating and Storage Temperatures: -4°F min. ~ 113°F max. (-20°C~45°C)
MDF3 Series Products and Accessories:
- MDF300: LED Floor Panel
- MDF232: Power Supply (powers up to 9 panels)
- MDF248: Power Supply (powers up to 15 panels)
- MDF264: Power Supply (powers up to 20 panels)
- MDF281: Power Supply (powers up to 40 panels)
- MDF454: Power Supply (powers up to 117 panels)
- MDF477: Power Supply (powers up to 156 panels)
- MDF297: Power Main Cable, 16ft
- MDF313: Power Main Cable, 20ft
- MDF320: Power Main Cable, 25ft
- MDF336: Power Main Cable, 50ft
- MDF388: Connection / Power Transfer Bracket
- MDF368: Panel Removal Tool
- MDF390: Power Supply Ramp
- MDF401: Edging Ramp
- MDF417: Corner Ramp
Specifications are subject to change without notice.
