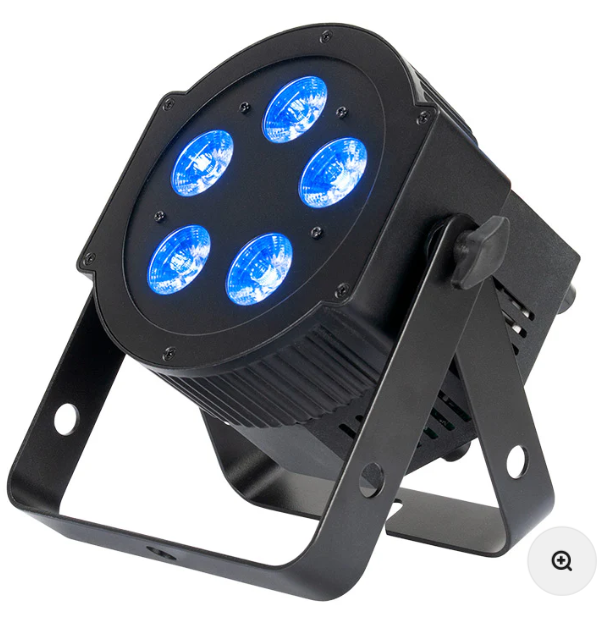

HEX355

FEATURES:
• Intelligently designed, patent pending power DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Scissor yoke + rubber feet allows fixture to be hung or set on the ground
• Flicker Free operation (No flickering on camera)
• Smooth RGBAW + UV color mixing
• All metal black exterior housing

OPTICAL:
• Light Source: 5 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White UV)
• LED life rated at approximately 50,000 hrs.
• Beam angle: 25-degree

CONTROL:
• 4-button, DMX digital display on rear panel
• Compatible with Dotz Par RF wireless remote control (sold separately)
• 7 Built-In Programs
• 63 built-in Color Macros
• 4 DMX Modes: 6, 7, 8, 12 channel
• 5 Operational modes: Static Color Mode, RGBAW UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural Theatre)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%

CONNECTIONS:
• Data linkable via 3-pin or 5-pin DMX connections
• Daisy chain power from locking power In/Out connections
• With Wired Digital Communication Network

ELECTRICAL:
• Multi-voltage operation: AC 100-240V, 50/60Hz

• Daisy chain up to 11 fixtures

DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 4.5” x 8.25” x 8.75”/ 114 x 208 x 222mm
• Weight: 5.8 lbs. / 2.6 kgs

WHAT’S IN THE BOX:
• Locking Power to Edison Cable
• Scissor yoke

APPROVALS:
• cETLus Approved (Control #4010765)
• CE Approved
