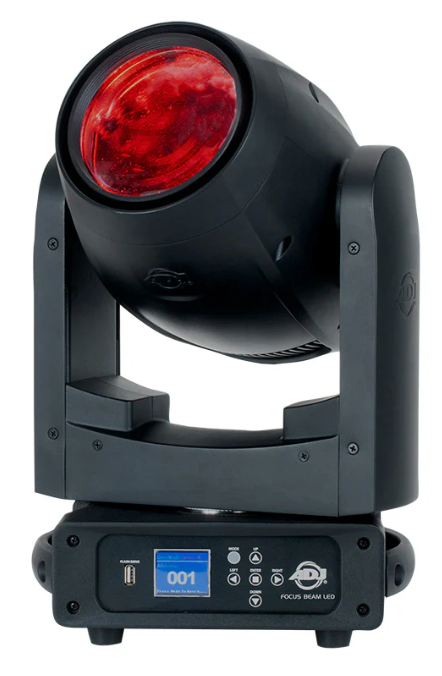

FOC369

Light Source:

1x 80W Cool White LED Engine

2.5° Beam Angle

Color Temperature: 7400K

50,000 Hour Average LED Life

Features:

Control Protocol: DMX RDM (Remote Device Management)

DMX Modes: 2 (16 18)

Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre Stage 2)

Dim Speed control (0.1~10 Seconds)

Dimming: 0 - 100%

Strobe pulse control

Motorized Focus

Linear Frost 0-100% (Wash effect)

2 Prisms: 6 8 Facet, Indexable and Rotatable

USB firmware update port

Adjustable LED Refresh Rates (900~25k Hz)

Adjustable Gamma Settings (1.0-2.8)

With Wired Digital Communication Network

Display: Touch display with 5-button touch menu

Color Wheel:

13 dichroic colors + white

GOBO Wheel:

Metal wheel with 15 fixed GOBOs + Open

GOBO shake effect

Prism Wheel:

Prism Wheel 1: Rotatable 8-facet Circular

Prism Wheel 2: Rotatable 6-facet Linear

Prism Indexing with overlay feature

Control:

Control Modes: DMX512, RDM (Remote Device Management)

  Stand Alone Internal Programs

2 DMX Channel Modes: 16 18 channels

16-Bit Pan, Tilt Dimmer control

Connections:

DMX Connections: 5-pin Locking XLR In Out

Power Connections: Seetronic Locking Power In Out

Pan/Tilt:

Pan Pan Fine: 630 degrees

Tilt Tilt Fine: 270 degrees

Electrical:

Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)

Maximum Power Consumption: 136W @ 120V

Daisy chain: 15 units @ 120V; 30 units @ 230V

Dimensions Weight:

Dimensions (LxWxH):  10.96" x 7.55" x 17.61" / 278x191x447mm

Weight: 27 lbs. (12.25 kg)

What’s Included:

2x Omega Brackets

1x Seetronic Power Locking Power Cable

Optional Road Cases:

DRC MH: 2 Focus Beam LED fit in the DRC MH Road Case

QRC MH: 4 Focus Beam LED Pearl fit in the QRC MH Road Case
