ENC900

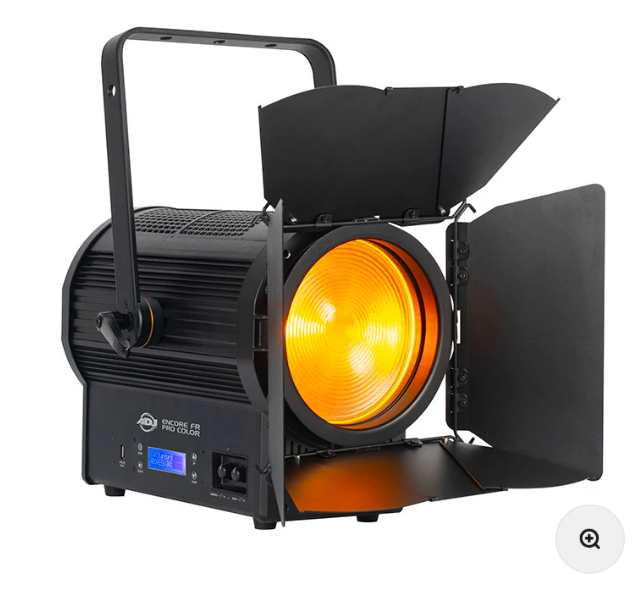

The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, cyan and lime LEDs. It offers a full spectrum of colors with CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K.
Description
Specifications
SOURCE
400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
9028 Total Stable Lumen Output (Full ON, Zoomed Out to Full)
9940 LUX, 923 FC @ 9.8’ (3m) (Zoomed In / Full ON)
2756 LUX, 256 FC @ 9.8’ (3m) (Zoom Out / Full ON)
Beam Angle: 9° to 37.5°
Max Field Angle: 49.8°
Color Temperature: Tunable, 2400K to 8500K
CRI: 97.8
COLOR:
Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control
Virtual Color Wheel Control
Virtual CMY Control
EFFECTS
Motorized Zoom
Electronic Dimmer and Strobe (1-20Hz)
Variable 16-bit Dimming Modes and Curves
Virtual CMY Color Mixing DMX Control Modes
Tunable White Color Temperature from 2400K to 8500K
62 Preset White Color Temp Macros (2400K to 8500K)
60 Preset Colors on Virtual Color Wheel
64 Preset RGBA Color Macros
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer and Shutter
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)
Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)
6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)
Dim Speed Options (0.1s to 10s)
4 Dim Curves (Square, Linear, Inv. Squa and S. Curve)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
3/5pin DMX Input and Output
Locking Power Input and Output
USB Service Port
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 16.6” (421.9mm)
Width: 14.18” (360.1mm)
Vertical Height: 19.29” (490mm)
Weight: 21.8 lbs. (9.9kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
420W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 2Pcs @ 110V / 5Pcs @ 240V
INCLUDED ITEMS
Barn Doors
Locking Power Cable
Two (2) Safety Cables
APPROVALS / RATINGS
CE | cETLus (Pending) | IP20
Specifications are subject to change without notice.
