ELE160

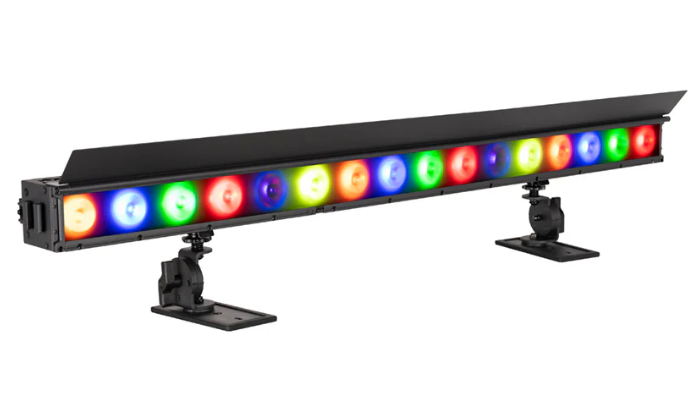

The ElectraPix Bar 16 is a cutting-edge IP65-rated, battery powered, wireless DMX 1-meter linear fixture. It features sixteen 20-Watt Hex Color LED (RGBAL+UV), Aria X2 wireless DMX / Management System and has a battery life up to 20 hours.
Description
Specifications
Features:
- 16 Pixel, Hex Color LED (RGBAL+UV) LED Bar
- Battery or Wall Powered
- Up to 20 Hour Battery Operation
- Battery Operation (Menu Option)
- Individual Pixel Control
- Built-In Foreground LED Programs
- Built-In Background LED Programs
- Variable White Color Temperature Control (2,300K ~ 9,900K)
- English amp; Spanish User Menu
- Built-In Alarm
- Color Calibrated LED's
- User Selectable LED Refresh Rates (900Hz ~ 25K)
- 6 User Selectable Dim Modes
- 4 User Selectable Dim Curves
- Electronic Strobe (0.3Hz ~ 11Hz)
- Electronic Dimming
- Attach up to two (2) ElectraPix Bar 16 to the Accu Stand VFB1 vertical floor base
Source:
- (16) 20W Hex Color RGBAL+UV Foreground LEDs
- (66) 0.2W RGB Background LED's
- 50,000 Hour Average Life*
Optical:
- 2,300K ~ 9,900K White Color Temperature Range
- 17° Beam Angle
- 45mm Lens Diameter x16
Physical:
- IP65 Housing
- OLED Digital display
- L Track system for locking accessories / rigging
- Glare Shield
- Diffusion Filter slot
- Angle adjustable feet
- Horizontal slide lock to attach additional ElectraPix Bar 16 or ElectraPix Bar 8
Control:
- DMX512
- Aria X2 Wireless Management / DMX System
- Bluetooth
- RDM and RDM Net Compatible
- IR (Includes UCIR24 wireless remote)
- (9) DMX Channel Modes (5, 6, 9,13, 22, 24, 96, 99 amp; 114 Channel modes)
- On-board Manual Control Mode
- Primary / Secondary Mode
Connections:
- 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
- Outdoor Locking Power Sockets
- Battery Charging Socket
Dimensions amp; Weight:
- Length: 3.72" (94.5mm) Width: 45.6" (1158. 7mm) Height: 10.6" (268. 7mm)
- Weight: 26.9 lbs. (12.2 kg)
Power:
- AC100-240V/50Hz-60Hz Input
- 90W Power Consumption
- Link 10 pieces @120VAC or 18 pieces @ 230VAC
Battery:
- Rechargeable Lithium ion
- Battery Capacity: 14,000mAh
- Battery Voltage: 22.2V
- Charge Time, AC Power: 5.5 Hours (To Full)
- Charge Time, Flight Case: 5.5 Hours (To Full)
- Up to 20 Hour Battery Operation
- Battery Cycles: 500
Thermal:
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications amp; IP Rating:
- CE
- cETLus
- FCC
- IP65
Included Accessories:
- (1) Outdoor Locking Power Cable
- (1) UCIR24 Remote
- (1) 20° Diffusion Filter
Optional Accessories:
- Accu Stand VFB1 (Floor Base)
- LTrack A2 (LTrack Adapter Only)
- LTrack CA2 (LTrack Adapter with Narrow Clamp)
- EPIX B816 IPCB: replacement charging base and power supply
Specifications and documentation subject to change without notice.
