DOT903

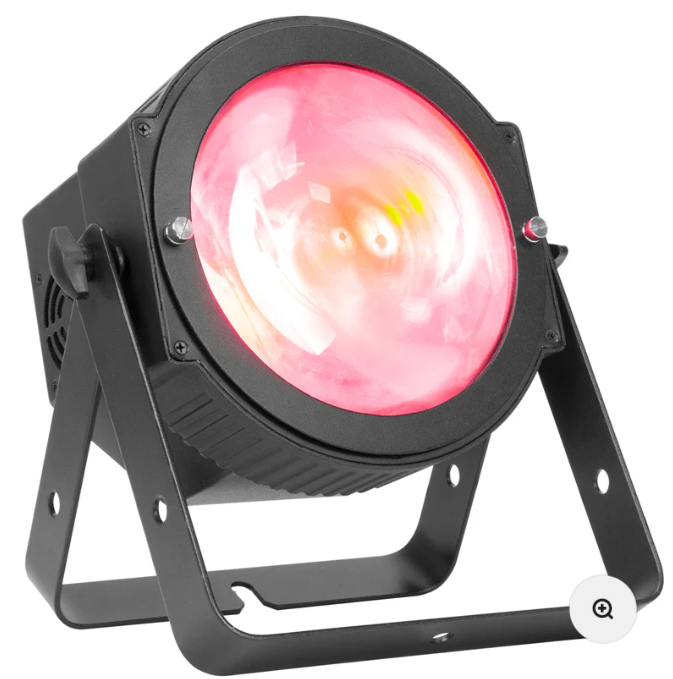

The ADJ Dotz Par 100 uses advanced COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGB shadows
Description
Specifications
- Light Source: 1x 100W COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)
- COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
- 5x Operational modes: Auto Run, Sound Active, Color Macro, Dimmer, and DMX
- 4 DMX channel modes: 3, 4, 5 or 9 channel
- Built-In preset colors and programs / 32 built-in Color Macros
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural Theatre)
- Beam angle: 80-degrees (25-degrees with supplied lens kit)
- Light Output: 2521 LUX @2M; 648 LUX @4M (25-degree beam -Lens On), 240 LUX @2M; 56 LUX @4M (80-degree beam - Lens Off)
- Refresh Rate: 3.6KHz
- 3-pin XLR chassis mount connectors for DMX linking
- With Wired Digital Communication Network
- IEC AC IN/OUT to daisy chain power (up to Dotz Par’s @ 110V andDotz Par’s @ 230V)
- Power Draw: 100W total (All LEDs @ Full On)
- Dimensions With Bracket (LxWxH): 10” x 5.75” x 11”/ 254 x 146 x 280mm
- Dimensions Without Bracket (LxWxH): 8” x 5.75” x 8”/ 203 x 146 x 203mm
- Weight: 5 lbs. / 2 kgs.
- cETLus Approved (Control #4010765)
