DOT287

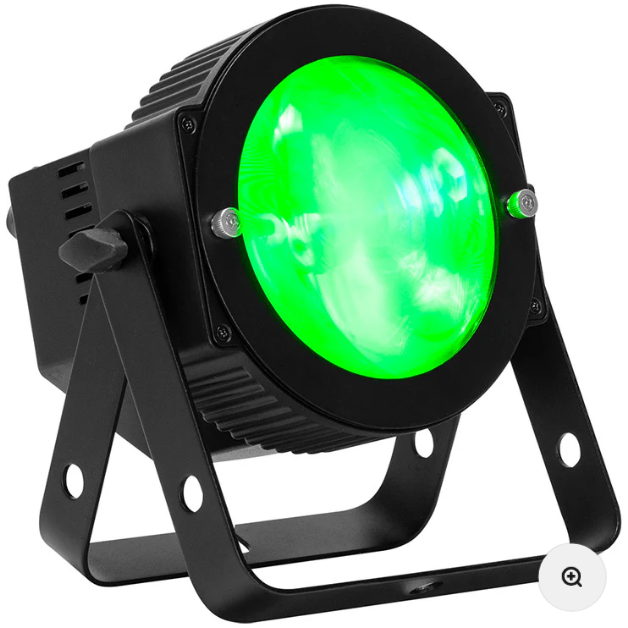

Drawing on the popularity of Chip On Board (C.O.B.) LED from the Dotz Par fixture, the ADJ Lighting Dotz Par RGBL uses the latest advancements in lighting technology with a RGBL (red, green, blue, lime) C.O.B. LED for a smooth, even field, high CRI output, advanced color mixing and tunable white color temperature control from 2700K to 6500K.
Description
Specifications
SOURCE:
• Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red, 4x Green, 4x Blue 4x Lime)
• 20,000 Hours Rated Life
PHOTOMETRIC DATA:
• 18° Beam Angle (With Included Lens)
• 29.7° Field Angle (With Included Lens)
• CRI: 85.3
• CRI R9: 79.1
• Lux: 957 (@ 3m, Full On)
• Footcandles: 89 (@ 3m, Full On)
• Lumens: 1102
EFFECTS:
• Linear Color Temperature Control (2700K to 6500K)
• Preset Color Temperatures
• 16-Bit Fine Color Control (Red, Green, Blue Lime)
• 64 built-in Color Macros
CONTROL:
• 4-button, DMX digital display on rear panel
• 6 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled
• Supports RDM (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• 1200Hz LED Refresh Rate
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
CONSTRUCTION / CONNECTIONS:
• Plastic construction
• IEC Locking, In/Out Power connectors
• Indoor 5-pin, XLR DMX, In/Out sockets
• Scissor Yoke
ELECTRICAL / THERMAL:
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Max Power LInk: 30 @120V., 57 @230V.
• Max power consumption: 36W
• Fuse protected: T1A/250V (5*20mm)
DIMENSIONS / WEIGHT:
• Length: 5.19" (131.8mm)
• Width: 8.23" (209mm)
• Height: 8.72" (221.44mm)
• Weight: 4.41lbs. / 2kg.
APPROVALS / RATINGS:
• CE
• cETLus (4010765)
• FCC
• IP20
INCLUDED ACCESSORIES:
(1) Power Cord
(1) Lens Kit
Specifications subject to change without notice.
