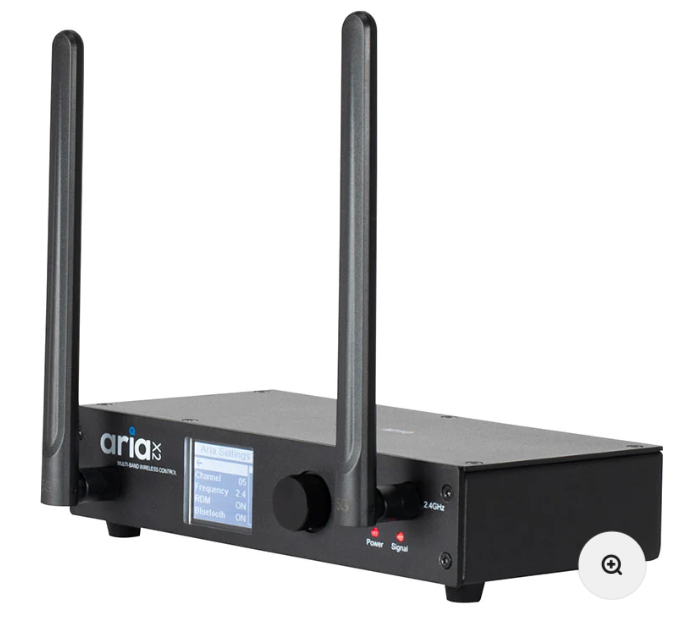

AX2100
The single universe, indoor Aria X2 Transcevier, the future of wireless lighting management, is here to transform your experience with unparalleled control, efficiency and ease. This comprehensive system harnesses cutting-edge technology to offer you a solution that adapts to your needs and provides a harmonious lighting experience, whether on show site or in the shop.
Description
Specifications
Features:
Supported Protocols:
- Single DMX Universe
- Sub-GHz, 2.4 GHz and Bluetooth
- Configuration via Aria X2 BLE app or front panel
- Wireless to DMX or DMX to Wireless
- DMX
- RDM (Planned for future software release)
- Proprietary 802.15.4
- Aria X2 Mesh Protocol (Planned for future software release)
- Bluetooth 4.2 (BLE)
- Aria X2 Serial Protocol
- This is our proprietary serial protocol for communicating with a variety of fixtures.
RF Characteristics:
- Frequency range
- Bluetooth: 2402-2480 MHz
- Zigbee: 2405-2480 MHz (EU)
- Sub-GHz: 906-924 MHz (US)
- Radio module: Aria X2
- Interference mitigation
- CSMA
- Adaptive frequency hopping (on the roadmap)
- OTA updates
Standards:
- Health
- EN IEC 62311:2020
- EN50665:2017
- BS EN IEC 62311:2020
- BS EN 50665:2017
- Safety
- EN IEC 62368-1: 2020+A11:2020
- BS EN IEC 62368-1: 2020+A11:2020
- EMC
- ETSI EN 301 489-1 V2.2.3 (2019-11)
- ETSI EN 301 489-3 V2.3.2 (2023-01)
- ETSI EN 301 489-17 V3.2.4 (2020-09)
- EN 55032:2015/A1:2020
- EN 55035:2017/A11:2020
- EN 61000-3-3:2013/A2:2021
- EN IEC 61000-3-2:2019/A1:2021
- BS EN 55032:2015/A1:2020
- BS EN 55035:2017/A11:2020
- BS EN 61000-3-3:2013/A2:2021
- BS EN IEC 61000-3-2:2019/A1:2021
- Radio
- EN 300 220-1 V 3.1.1 (2017-02)
- EN 300 220-2 V 3.2.1 (2018-06)
- ETSI EN 300 328 V2.2.2 (2019-07)
Connectors:
- Antenna: 5G JT SMA
- DMX: 5-pin XLR Input and Output
- DC: 2.5mm/5.5mm Barrel connector
- IP65 Locking Power Input and Output
Power:
- AC100-240V 50/60Hz
- Power Consumption: 2W
- Power Fuse: T1.25A/250V. (5 x 20mm)
Physical:
- IP20 Aluminum / Metal enclosure
- Front panel digital screen and rotary knob
- M10 and M12 Threads
- Safety Eyelet
- Max ambient operating temp: 113°F (45°C)
- Max operating humidity: <75%
- Storage temperature: 77°F (25°C)
- Rack and wall mount accessories
Dimensions and Weight:
- Length: 6.46" (163.95mm)
- Width: 8.48" (215.30mm)
- Height: 1.66" (42mm)
- 2.7lbs (1.23kgs.)
Specifications subject to change without notice.
