Spécifications

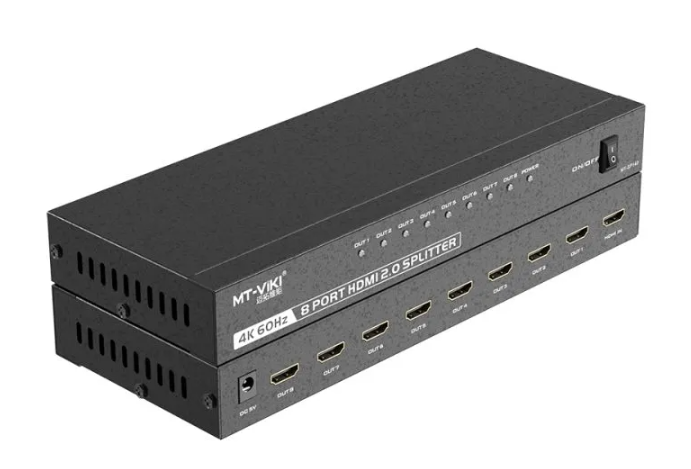

| Model | MT-SP148 |
|---|---|
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Video Output | |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Video | |
| Max. Data Rate | 18Gbps(6Gbps/per channel) |
| Bandwidth | 600HMz |
| Compliance | HDMI (3D, Deep Color, 4K*2K); |
| HDCP 2.2 Compatible | |
| N/A | |
| Max. Resolution | Up to 4096X2160/3840X2160@60Hz (4:4:4) |
| Impedance | 100Ω |
| Max. Distance | Up to 15 m |
| Audio | |
| Input | 1 x HDMI Type A Female (Black) |
| Output | 8 x HDMI Type A Female (Black) |
| Connectors | 1 x DC Jack |
| Power | DC5V |
| Power Consumption | N/A |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20~60°C |
| Relative Humidity | 10% ~ 90% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight(g) | 500 |
| Dimensions (L x W x H,mm) | 250*100*30 |
