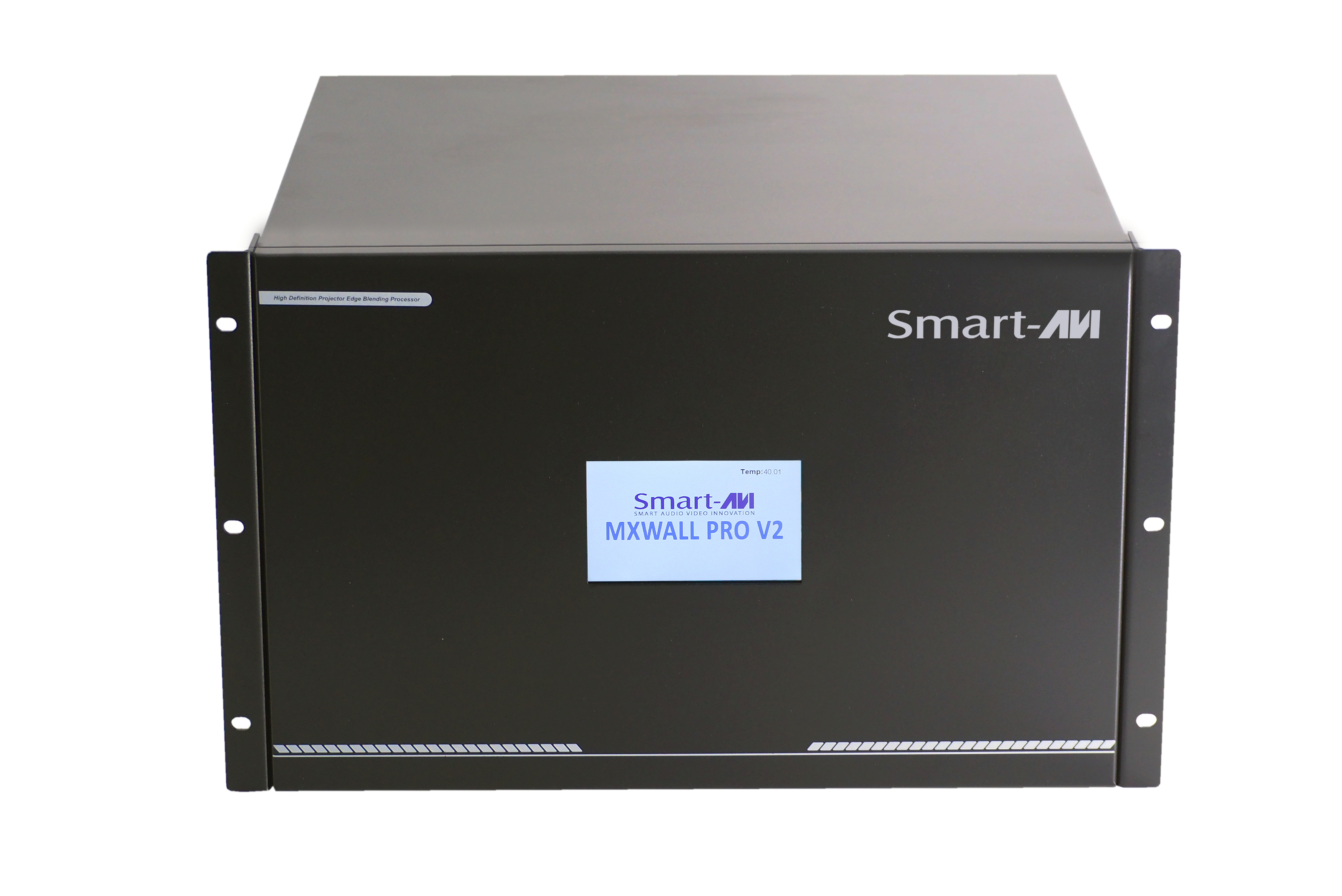

MXwall Pro V2 – 6.5U

All-in-one video wall and matrix solution with 1080p Full HD resolution output, integrated converter & scaler, flexible creative configuration modes, and user friendly control software!
Description
  • Complete hardware solution
  • Plug-and-play ready
  • 36 HDMI Inputs
  • 36 HDMI Outputs
  • Supports DVI with adaptors
  • 1080p (1920×1080 @ 60Hz) Output Resolution
  • Creative video wall display modes
  • Easy control (front-panel, software, and RS-232)
  • HDCP and HDMI 1.4 compliant
  • User-Friendly MXwall Manager Software
Video
Video Amplifier Bandwidth 3.2G
Input Video Signal Video (TMDS) 0.5~1.0Vpp
Input DDC Signal 5 volts
Compliances HDMI 1.4, HDCP
Pixel Rates Clock frequency beyond 165Mpix/second
Format 4:4:4 and 4:2:2 data input formats
Resolution 480p, 720p, 1080i, 1080p
Input Card Format 4-port HDMI card
Output Card Format 4-port HDMI card
Input Slots Up to 8 (2 cards)
Output Slots Up to 12 (3 cards)
Video Type RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits
Controls
Front Front-panel touchscreen
RS-232 DB9 Female, 115200 BPS, N, 8, 1, No flow control
TCP/IP RJ45, UDP
Other
Working Temperature 0°C~+55°C
Storage Humidity Up to 95%
Weight 20 lbs.
Dimensions 17 in (W) x 3.5 in (H) x 15 in (D)
Power Supply 50/60Hz, 100~230 VAC
Consumption 300W
MXwall MANAGER SOFTWARE
Operating System Windows 7-10, Android 7 and above
