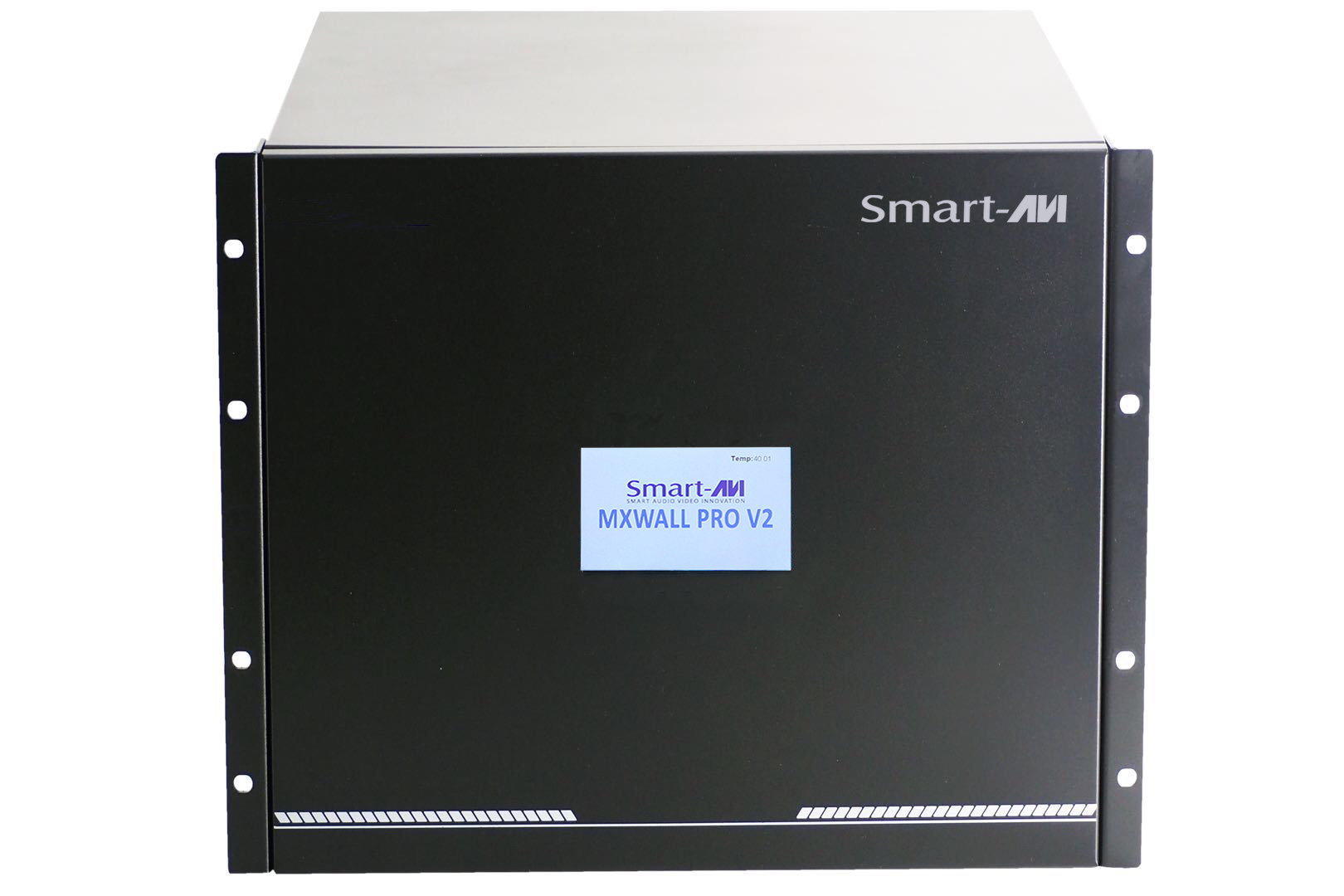

MXwall Pro V2 – 11U
All-in-one video wall and matrix solution with 1080p Full HD resolution output, integrated converter & scaler, flexible creative configuration modes, and user friendly control software!
Description
- Complete hardware solution
- Plug-and-play ready
- 64 HDMI Inputs
- 64 HDMI Outputs
- Supports DVI with adaptors
- 1080p (1920×1080 @ 60Hz) Output Resolution
- Creative video wall display modes
- Easy control (front-panel, software, and RS-232)
- HDCP and HDMI 1.4 compliant
- User-Friendly MXwall Manager Software
| Video | |
|---|---|
| Video Amplifier Bandwidth | 3.2G |
| Input Video Signal | Video (TMDS) 0.5~1.0Vpp |
| Input DDC Signal | 5 volts |
| Compliances | HDMI 1.4, HDCP |
| Pixel Rates | Clock frequency beyond 165Mpix/second |
| Format | 4:4:4 and 4:2:2 data input formats |
| Resolution | 480p, 720p, 1080i, 1080p |
| Input Card Format | 4-port HDMI card |
| Output Card Format | 4-port HDMI card |
| Input Slots | Up to 8 (2 cards) |
| Output Slots | Up to 12 (3 cards) |
| Video Type | RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits |
| Controls | |
| Front | Front-panel touchscreen |
| RS-232 | DB9 Female, 115200 BPS, N, 8, 1, No flow control |
| TCP/IP | RJ45, UDP |
| Other | |
| Working Temperature | 0°C~+55°C |
| Storage Humidity | Up to 95% |
| Weight | 20 lbs. |
| Dimensions | 17 in (W) x 3.5 in (H) x 15 in (D) |
| Power Supply | 50/60Hz, 100~230 VAC |
| Consumption | 300W |
| MXwall MANAGER SOFTWARE | |
| Operating System | Windows 7-10, Android 7 and above |
