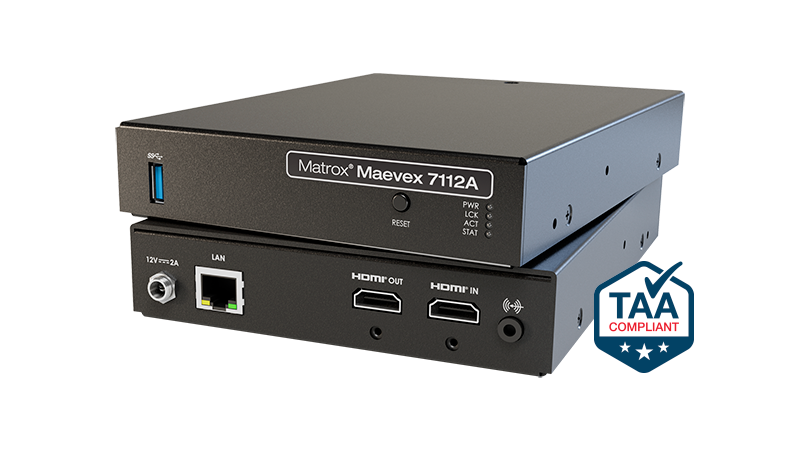

MVX-E7112A-1

• Standalone appliance
• Rack mountable (1U, 1/3R)
• Weight is ~350 grams/0.77 lbs

Performance

Maximum capture resolution

1x 3840x2160 @60Hz

Color space capture

• RGB and YUV 8-bit support
• Color space conversion support

Encoding formats (Codecs)

• Video: H.264/MPEG-4 Part 10 (AVC)
• Audio: MPEG-4 AAC-LC, OPUS and LPCM

Chroma sub-sampling

4:2:0 (8-bit)

Encoding capability @4:2:0

1x 3840x2160 @60Hz

Profiles

Baseline (BP), Main (MP), High (HiP), High 10 (Hi10P) Intra, up to Level 5.2

Encoding level

Up to 5.2

Bitrate range (Per stream)

• 64Kbps to 60 Mbps
• 15 Mbps (default)

Rate Control

CBR, VBR, adjustable GOP size

Audio sample frequency

32 kHz, 44.1 kHz, and 48 kHz

Audio bitrates

From 64 to 320 Kb/s (AAC-LC, OPUS and LPCM)

Scaling

Yes

Recording

File formats

Transport Stream (.TS)

Programmability

Start/stop, duration, file location

Recording locations

• Shared network drive or NAS
• USB 3.0*

Networking interface

Streaming protocols

• RTSP (TCP), RTCP & RTP (UDP) - all required
• RTP over UDP
• SRT over UDP
• RTMP/(S)
• MPEG2-TS over UDP
• MPEG2-TS over RTP
• RTSP over TCP (interleaved)

Command & control

HTTPS over TCP, UPnP (discovery), SSDP

Network standard

• 100/1,000 base-T Ethernet, auto speed, half/full duplex
• IGMPv2 and IGMPv3 support

IP addressing

iPv4, DHCP (default) and static IP address support, iPv6

IP stream support

Unicast, multicast

Network security

802.1x support*

Software

PowerStream Plus (Free download)

• Compatible with Maevex 6100 Series and Maevex 5100 Series
• Network discovery
• Multi-encoding and recording management
• Multi-protocol management
• Frame rate management
• Resolution control
• Administrator and user credential management
• Scaling management

Command Center Web UI

• Encoding and recording management
• Multi-protocol management
• Frame rate management
• Resolution control
• Scaling management

Maevex 7100 Series REST API

Available for lower-level development

Supported operating systems

Microsoft® Server® 2022, Windows® Server® 2019, Windows® 11, Windows® 10

Connectivity

Network connector

1x RJ45 with status LED indicators

Video input

1x HDMI® 2.0 (Type A) with audio support

Video output/Pass-through

1x HDMI® 2.0 (Type A) with audio support

Audio input

• 1x HDMI digital LPCM two-channel stereo audio
• 1x 3.5 mm analog stereo audio in
  • 0.57 Vrms
  • 29 kΩ
  • 6 dB to +16.5 dB

Audio output

1x HDMI digital LPCM two-channel stereo audio

USB (For recording)

1x USB 3.0*

Hardware

Noise emission

 Fanless

Power supply

• 100-240 VAC in, 12 VDC out, ~12W typical (40W max)
• Barrel locking power connector

Power cords included

US, EU, UK, Aus/NZ

Product dimensions

7.11 x 5.50 x 1.31 in

(18.07 x 13.97 x 3.33 cm)

Operating conditions

• Temp: - 0 to 45 degrees C
• Altitude: 650 hPa (3580m) to 1013 hPa (0m)
• Humidity: 10 to 90% non-condensing

Storage conditions

• Temp:  -40 to 70 degrees C
• Altitude: 192 hPa (12000m) to 1020 hPa (-50m)
• Humidity: 10 to 90% non-condensing

Accessories

• Rackmount Kit (part number: RMK-19TR-A)
• Secure Cable Solution for HDMI (part number: SK-SLND-4)
