MVX-RR6020-P

Standalone appliance

Rack-mountable: 1U, 1/2 rack (horizontal)

Number of channels:
2

Formats:
HDMI (Type A)

Number of channels:
2

Formats:
HDMI (Type A) zero latency pass-through

2x analog stereo audio (3.5mm)
      • 1 Vrms (0 dBV)
      • 14.3 kΩ (gain = 0 db)

1x stereo mic (3.5mm)
      • 2.5 V
      • 1 Vrms (0 dBV)
      • 15 kΩ (gain = 0 db)

1x headphone (3.5 mm)
      • 1.2 Vrms (1.6 dBV)
      • 32 mW into 32Ω

1x RJ45

1x USB (front), 1x USB (back), with support for:
      • Kuando™ Busylight UC Omega
      • Last session file transfer
      • USB to RS232 cable for tabletop touch-screen controllers

1x DisplayPort™ monitoring output (1920x1080), with viewing options for input 1, input 2, or inputs 1 and 2 side by side

H.264/MPEG-4 Part 10 (AVC)

Up to dual 1920x1080

Integrated 128 GB solid-state drive for 18 hours or more of continuous recording at maximum quality levels

Primary input's maximum recording levels*
1920x1080
1280x720
960x540
768x432

Secondary input's maximum recording levels*
1920x1080
1280x720
960x540

*Simultaneous multiple recordings for each input

Gigabit Ethernet operation

RTMP live streaming to Panopto

8.53 (L) x 7.52 (W) x 1.68 (H) inches
21.7 (L) x 19.1 (W) x 4.3 (H) cm

Push-button controls:
      • Button 1 (toggle)
       Local manual record start, and pause/resume any on-going session

      • Button 2 (single function)
       Local manual record stop

      • Button 3 (toggle)
       DisplayPort monitoring output (input 1, input 2, inputs 1 and 2 side-by-side)

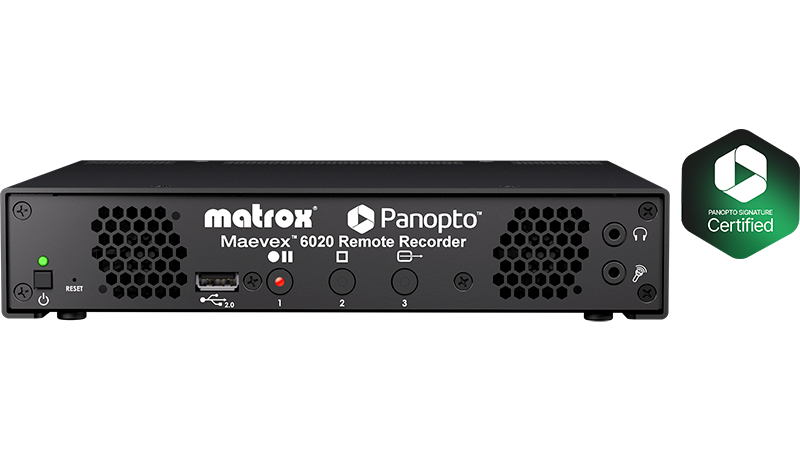

Maevex 6020 Remote Recorder
Power supply: External 12 V d.c. , 60 watts
Power cords (US, EU, UK, Aus/NZ)

Rack Mount Kit (RMK-19TR-A)
      • Rack mounting shelf (19 in / 48.26 cm)
      • Pan head Phillips screws (4x 10-32 x 3/4 in)
      • Pan head Phillips screws (4x 12-24 x 3/4 in)
      • Flat head Phillips screws (6x M3 x 6 mm)

Kuando™ Busylight UC Omega
      • Sold separately by Plenom

Maevex 6020 Configuration and Firmware Utility (free download)
      • Allows simple and easy connection to Panopto
      • Provides silent, centralized, optional firmware updates for Maevex 6020 Remote Recorders

RS232 API (free download)
Use the Maevex 6020 Remote Recorder RS-232 API to program a variety of basic commands for simple control of Maevex 6020 devices and for convinient in-room control via Crestron™, Kramer™, Extron™, or other tabletop touch-screen controllers.

REST API (status)*
With the Maevex 6020 Remote Recorder REST API, easily retrieved status updates from all Matrox Maevex 6020 devices on the network and have the ability to send RS-232 control commands over IP. Effortlessly send commands such as start, stop, pause, resume, extend and even reboot with just the touch of a button—providing teachers and presenters with ease-of-use and even greater ease-of-mind.

*Contact Matrox for more details

35W

Class A

ACMA

CE (EU)

FCC (US)

ICES-3 (Canada)

KC (Korea)

VCCI (Japan)

China RoHS

EU RoHS

REACH

WEEE

Two-year limited warranty with free online or telephone support
