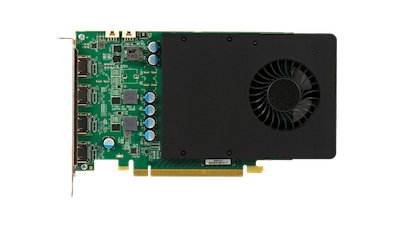

D1450
Featuring 4 x HDMI outputs to drive up to four synchronized 4K60 displays or projectors from a single graphics board.
Description
D1450 Quad HDMI Graphics Card Technical Specifications
| Product | |
| Part Number |
D1450-E4GB |
| Bus Interface |
PCIe x16 Gen 3 |
| Connectivity | |
| Video Output |
Number of channels: Connectors: |
| Audio Output |
Multi-stream audio through HDMI (4 streams) |
| Maximum Number of Cards per System |
4 |
| Framelock Support |
Yes |
| Performance | |
| GPU |
NVIDIA |
| Memory |
4 GB GDDR 5 |
| Video Output Resolutions |
4096x2160 @ 60Hz |
| Video and Audio Processing | |
| Clone Mode |
Yes |
| Rotation (output) |
Yes |
| Edge Overlap |
Yes |
| Bezel Management |
Yes |
| Video Scaling |
Yes |
| Video Cropping |
Yes |
| Stretched Desktop Support |
Yes |
| HDCP Support |
Yes |
| Supported Graphics Control |
DirectX® 12.0 |
| Physical | |
| Product Dimensions |
Length: 7.928" (20.137 cm) |
| Cooling |
Active (with fan) |
| Hardware & Software | |
| Accessories (sold separately) |
Board-to-Board Framelock Cable (CAB-FL-F) |
| Software |
Matrox PowerDesk (free download) |
| Main Software Features |
Independent Desktop Mode Stretched Desktop Mode Clone Mode Pivot Mode |
| Environmental | |
| Operating Conditions |
Temperature: 5 to 55 degrees Celsius near board ambient |
| Power Consumption |
50W |
| General | |
| System Requirements |
Single available PCIe x16 lane |
| Supported Operating Systems (hardware) |
Microsoft® Windows® 10 (64-bit) |
| EMC/EMI Device Class |
Class A |
| EMC/EMI Compliance |
CE (EU) FCC (US) ICES-3 (Canada) KC (Korea) RCM (Aus/NZ) |
| Environmental Compliance |
China RoHS EU RoHS REACH |
| Warranty |
Three-year limited warranty with free telephone support |
