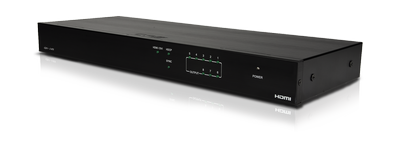

QU-18S
Splitter HDMI 1x8 rackable
Description
The QU-18S Distribution Amplifier (splitter) accepts one HDMI input and splits this signal to eight identical outputs. This device is compatible to v1.3 HDMI specifications, supporting ‘Deep Colour’ together with High Definition Audio. Each buffered output can run 1080p/8-bit up to 20 metres and can also be cascaded up to 3 layers.
- v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
- HDMI 1 to 8 Splitter
- Resolutions supported: PC - VGA to UXGA; HDTV - 480i to 1080p plus 1080p24fps
- High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (32-192KHz sample rate)
- Auto signal amplification & equalisation improves signal transmission distances
- Supports CEC bypass
- Supports Deep Colour (10 & 12bit)
- Selectable EDID settings - TV (downstream) and STD (fixed)
- Power, HDMI/DVI, HDCP & SYNC plus independent output LED's indicator
- Supports xvYCC
- Supports 3D signals
| Inputs | 1x HDMI [1x HDMI Uncompressed AV and Data] |
| Outputs | 8x HDMI [8x HDMI Uncompressed AV and Data] |
| PSU: | 5V/6A |
| Dimensions | 435mm [W] x 160mm [D] x 45mm [H] |
| Net Weight | 1750g |
| Gross Weight | 2020g |
