DIN-SACN-DMX

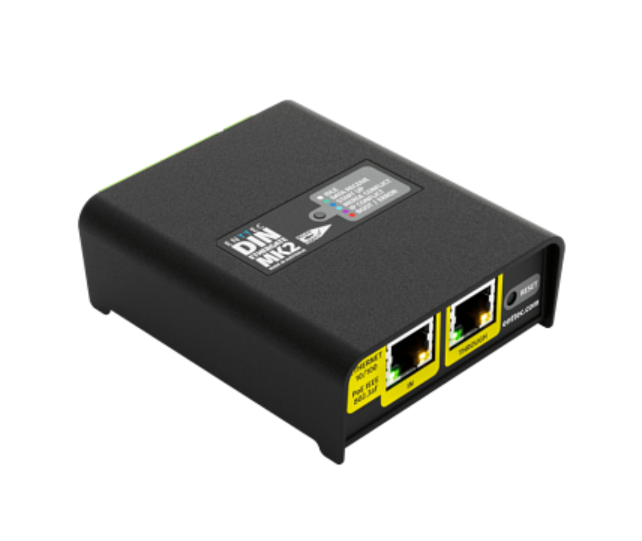

ENTTEC® DIN Ethergate Mk2 – Ethernet to DMX Converter
Description
The Crestron DIN-SACN-DMX (sold by ENTTEC as model DIN Ethergate Mk2) is a cost-effective and reliable Ethernet to DMX convertor. It supports sACN, Art-Net, and ESP protocols, and integrates DMX and network controllable lighting devices and systems. As part of a Crestron architectural lighting system, it allows a 3-Series® or 4-Series™ control processor to communicate via sACN with any DMX lighting fixture or controller.
The DIN-SACN-DMX's electrically insulated housing supports TS35 DIN and surface mounting for fast installation. In addition, pluggable terminal blocks with an inbuilt termination line make wiring simple.
Key Features
- Converts between DMX512A and sACN, Art-Net, and ESP protocols
- Enables distribution of DMX over a Ethernet or Wi-Fi® network
- Enables control of DMX lighting fixtures and systems by Crestron devices
- Supports a single universe Ethernet to DMX node in output mode
- Supports a single universe DMX to Ethernet node in input mode
- Supports broadcast or unicast (unicast in input mode only)
- Supports HTP/LTP merging of up to 2 DMX sources (output mode only)
- Supports RDM over Art-Net
- Easy web browser-based setup and firmware updates
- 4U 72 mm DIN rail mountable
- PoE or 12-24VDC powered (power supply not included)
