DIN-EN-2X18-HC-2OPEN

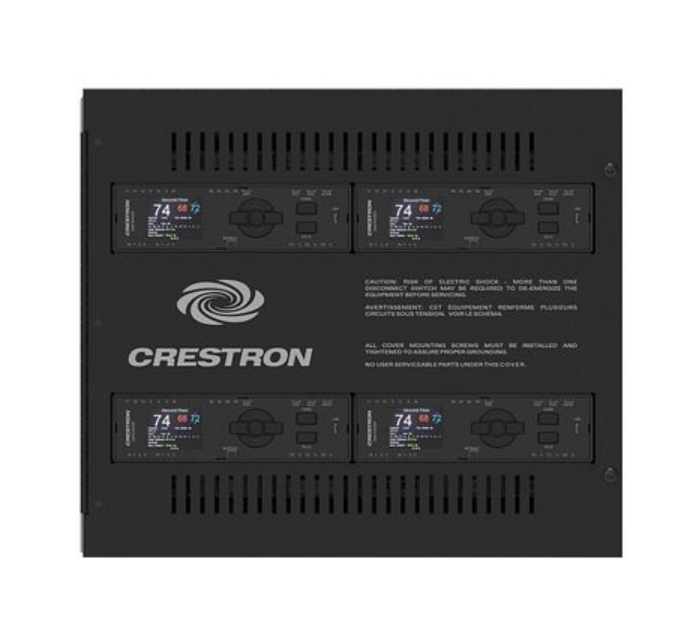

The Crestron® DIN-EN-2X18-HC-2OPEN is a UL® Listed enclosure that provides an attractive centralized mounting solution for the DIN-THSTAT thermostats and other DIN rail modules. An elegantly finished black cover matches the aesthetic of the DIN-THSTAT thermostat and provides a professional look and feel. A hinged cover provides easy access to equipment wiring while openings in the cover provide access to the DIN modules through the cover.
DIN Rail Mounting
The DIN-EN-2X18-HC-2OPEN enclosure utilizes 18M wide DIN rails to install up to 2 DIN modules (9M wide) per DIN rail.
Raised DIN rails allow access to the DIN module's control surface through the cover openings. The DIN-EN-2X18-HC-2OPEN provides 2 raised DIN rails (18M wide) with the ability to install 4 DIN modules (9M wide).
Key Features
- DIN rail enclosure for the DIN-THSTAT thermostat and other DIN modules (sold separately)
- 2 Cover openings provide access for up to 4 DIN modules (9M wide) through the cover
- 2 DIN rails, 18M wide
- Raised DIN rails allow for additional wiring behind the DIN rails
- Elegantly finished black cover
- Blank cover plates (3M and 9M wide) supplied to cover unpopulated cover openings
- Hinged cover for easy access to the equipment wiring
- UL® Listed
