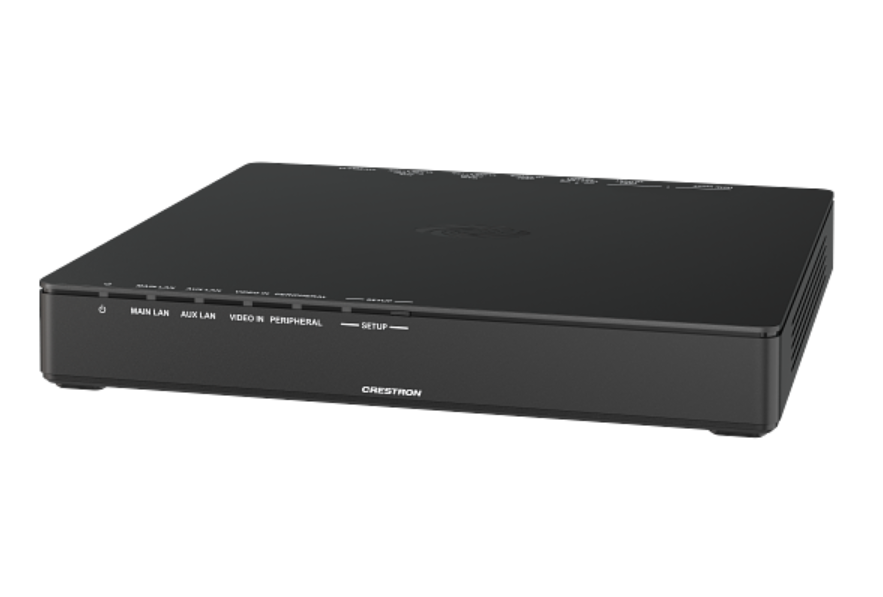

AM-TX3-200

The AirMedia® Series 3 Connect Endpoint (AM-TX3-200) enables wireless presentation and conferencing1 when paired with a Wi‑Fi® network capable AirMedia Series 3 Receiver. Deploy the AM‑TX3‑200 alongside a compatible AirMedia receiver in conference rooms, huddle spaces, classrooms, or almost any space to establish a productive meeting or learning environment.

A Complete System Solution
The AM‑TX3‑200 works alongside a compatible AirMedia receiver to provide a complete system solution. The AM‑TX3‑200 communicates with the AirMedia receiver using a point-to-point Wi-Fi Direct connection, an infrastructure Wi‑Fi network, or a wired network.

Simple Connectivity
A personal device can be connected to the AM‑TX3‑200 using either a single USB-C® cable2 or a combination of a USB-A cable2 and an HDMI®cable2, supporting a wide variety of devices (cables sold separately). No drivers, software, or applications are required, offering a simple and user-friendly experience.

Rapid, High‑Resolution Presentation
The AM-TX3-200 leverages USB-C and HDMI for native video communication, eliminating the need for software installation on personal devices. Simply connect and start presenting to the in-room display with up to 4K30 resolution within seconds.

Seamless Conferencing
When the AM‑TX3‑200 is connected to a personal device via USB, the user can access in-room conferencing peripherals3 connected to a paired Wireless Conferencing-capable AirMedia Receiver (AM‑3100‑WF or AM‑3200‑WF). These peripherals can then be used on the personal device with unified communications software such as Microsoft Teams® or Zoom® software.

Flexible Deployment Options
The AM-TX3-200 is designed to be deployed in a variety of spaces with unique power, connectivity, and installation requirements. The device can be powered via PoE, DC power, or the connected user device via USB-C. When powered with a local power supply (PW-2420RU), PoE+ is available to a device connected to the AUX port, such as a touch screen.

The device is shipped with a bracket, ensuring secure mounting and easy installation.

NOTE: When using USB-C to power the device, only the USB-C input is active. The AM-TX3-200 wired network interfaces will not function in this mode.

Enterprise-Grade Security
The AirMedia platform is an enterprise-grade solution that can be deployed across multiple spaces, and set up using a web browser or the XiO Cloud® service. It employs standard network security protocols such as AES content encryption to protect privacy and ensure compliance with your organization’s IT policies. AirMedia receivers support security standards such as 802.1x network access control and Active Directory® authentication.
