WH410

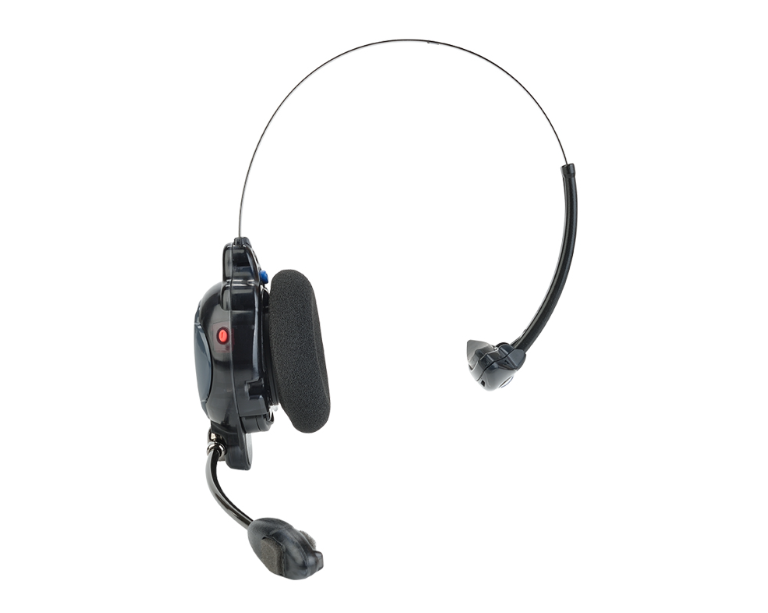

The WH410 is a light-weight, single-ear, all-in-one wireless headset, operates in the license-free 2.4GHz frequency range and are used with the BS410 base station. The WH410 is compatible with the DX410 digital wireless system.
Description
Technical
- Two-channel operation
- 2.4GHz frequency range
- Hands-free communications
- Up to 15 all-in-one headsets on a single system
- 7 kHz wide band audio
- Single-ear, light-weight design
- Rugged and reliable
- Up to 12 hours of battery life
Technical
Specifications
Audio
Channels: 2 audio channels
Frequency Range: 2400MHz – 2483.5MHz
Frequency Response: 200Hz – 7 kHz
Antenna: Internal, horizontal/vertical diversity
Headset Connector: 4-pin, mini-DIN
Microphone: Electret
Headset Output: 160mW into 32Ω
System Distortion: <2%
Controls: Power, Volume-Up, Volume-Down, A, B, ISO
Indicators: Dual-color LED (red/green)
Battery Requirements: 3.6V lithium-ion
Battery Life: Up to 12 hours
Antenna
InternalTransmitter
Type: Frequency Hopping, Spread Spectrum (FHSS)
Transmit Power: 100mW burst
Modes: Momentary or Latch
Type: Gaussian filtered FSK, TDMA
Frequency Stability: 13 ppm
Harmonics/Spurious: Exceeds FCC and ETSI specifications
Receiver
Type: Frequency Hopping, Spread Spectrum (FHSS)
RF Sensitivity: <-90dBm w 10-3 BER
Frequency Stability: 13 ppm
Distortion: <2%
