U-BOX
Details

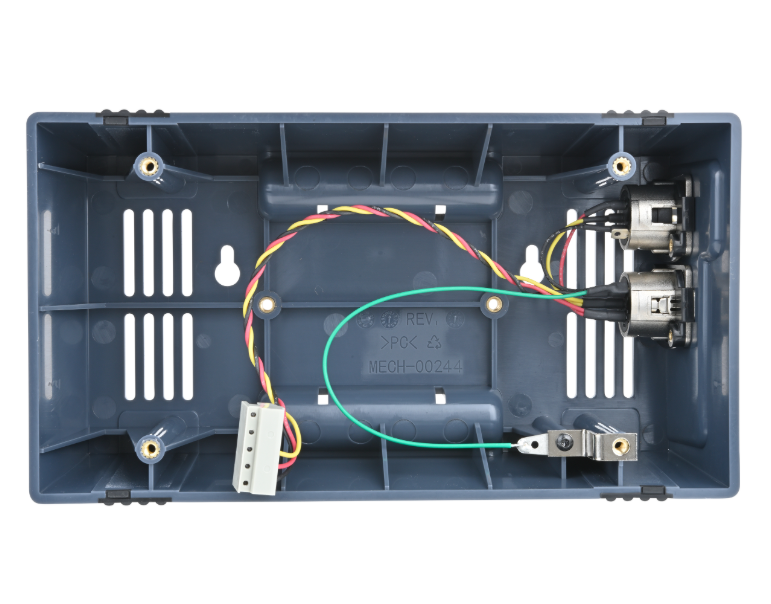

- Enclosure for KB speaker station
- Permanently installed or portable
- Integrated handles
- Vertical or angled KB installation
- Desktop or wall mount
- VESA 75 mounting option
- Rugged enclosure
- Available wired for single or dual-channel partyline and 4-wire
Item Code
U-BOX-X3: Single-Channel
U-BOX-X6: Dual-Channel
U-BOX-RJ45: RJ45 Four-Wire
PSU-EXT-003: Power supply for U-Box-RJ45
Following included with U-Box: 280038Z-SP: Screw Kit to fasten KB / HB - (4 screws) 6-32 x 1/2”
MECH-00246-SP: Mounting Bracket Kit
Technical
Specifications
Connectors
U-Box-X3 XLR Partyline: 3-pin XLR-M/F
U-Box-X6 XLR Partyline: “Switchcraft-style”* 6-pin XLR-M/F
U-Box-RJ45 Four-Wire: etherCON RJ45
Input Power Connector: DC 2.1mm Co-axial
Environmental
32° - 158°F (0 - 70°C)
Mounting
U-Box Keyholes Center-to-Center: 4.0in (101.6mm)
Keyhole Diameter: 0.318-0.159in (8.08-4.04mm)
VESA Sockets Center-to-Center: 2.95in (75mm)
VESA Thread Type: M4x10
Mounting Bracket Keyholes Center-to-Center: 5.9in (149.9mm)
Dimensions
U-Box: 4.5 x 8.2 x 2.8in (HxWxD)
(113.79 x 208.79 x 70.23mm)
U-Box in Mounting Bracket: 5.4 x 8.3 x 6.1in (HxWxD)
(136.19 x 209.55 x 154.37mm)
Weight
U-Box: 0.71lbs (0.32kg)
U-Box with Mounting Bracket: 0.90lbs (0.41kg)
U-Box with KB Speaker Station: 1.97lbs (0.89kg)
*IMPORTANT: XLR Connector Compatibility Clear-Com products featuring 6-pin XLR connectors utilize the Switchcraft XLR pin layout. Compatible connectors are available from manufacturers, such as Switchcraft and Neutrik, yet compatibility must be verified. Neutrik 6-pin XLR connectors must include “S” in the part number to ensure compatibility.
