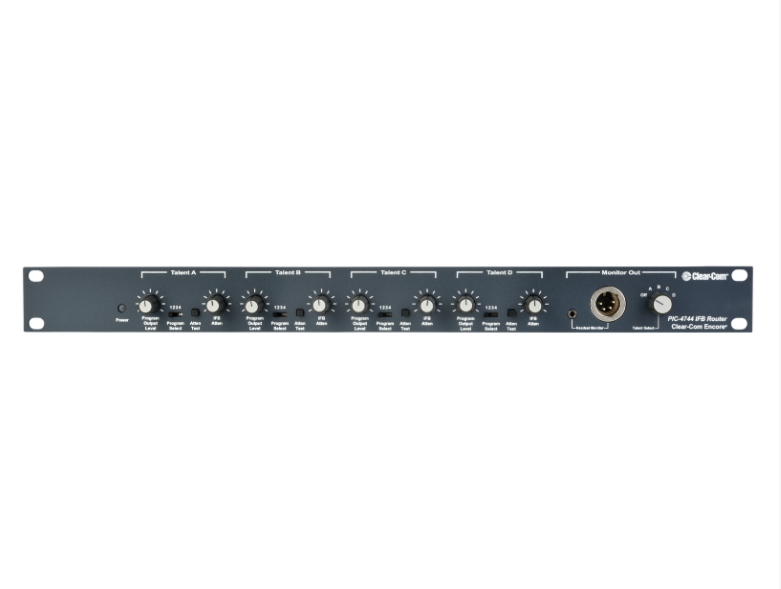

PIC-4744
Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.
Details
- Four separate Program channels and Talent channels
- Wet/Dry switch to access 3rd party wireless IFB, console input, recording devices, etc.
- Program attenuation individually adjustable for each talent output
- Tally lights indicate IFB channels in use
- All IFB button simultaneously access all IFB channels
- Powered by the intercom line
Item Code
PIC-4744
Technical
Specifications
Program Line Input
Maximum Level Before Clipping: >= 20dBu
Input Impedance: <10kΩ
Audio
Output Level for Talent: Clear-Com Partyline Level (approx. -10dBu)
PGM Source Adjustable Range: +20dBu
Attenuation Adjustable Range: 50dBu
Frequency Response
Panel Input – Talent: 200 – 18kHz +3dB
Max Distortion
Program Input – Talent: <= 0.1%
Noise
Program Input - Talent: < -85dBu
Power
Input Voltage Range: 20-30V DC
Input Current: <= 90mA
Rear Panel Connectors
IFB Input: (2) XLR6F-Switchcraft pin layout*
Power Loop Through: (1) XLR3M, (1) XLR3F
Talent Out: (4) XLR3M
Program In: (4) XLR3F
Wet/Dry Switch: (4)
Front Panel Controls & Indicators
(1) Power indicator LED
(4) Program Output level controls
(4) Program Select input switches
(4) Attenuation (Atten) test buttons
(4) Attenuation (Atten) level controls
(2) Headset Monitor ports (3.5mm and XLR)
(1) Monitor select switch
Environmental
32° - +122°F (0° - +50°C)
Dimensions
19 x 1.75 x 7.5in (WxHxD)
(483 x 44 x 190mm)
Weight
5.76lbs (2.6kg)
*IMPORTANT: XLR Connector Compatibility Clear-Com products featuring 6-pin XLR connectors utilize the Switchcraft XLR pin layout. Compatible connectors are available from manufacturers, such as Switchcraft and Neautrik, yet compatibility must be verified. Neutrik 6-pin XLR connectors must include “S” in the part number to ensure compatibility
