IMF-3
Details
Specialty Interface Modules
For use with MVX-16A Interface Card
- Audio - Line-Level Isolated
- Partyline - Unbalanced
- Telephony - POTS*
- Audio - Digital AES6*
For use with Eclipse CPU Card
- Control - GPIO Isolated*
Interface Module Options
- CCI-22
- FOR-22
- RLY-6
- GPI-6*
- TEL-14*
- AES-6*
Interface Frame Options
- Median
- Delta
- Delta-Lite
- IMF-102
- IMF-3 with PSU-101
Eclipse Digital Matrix System
- Advanced Intercom System
- Scalable, Modular & Redundant
- Flexible Connectivity
- Effortless Networking
- Self-Contained System
Item Code
IMF-3
Product
Description
Description
Eclipse HX specialty Interface Modules seamlessly connect Eclipse HX intercom systems to external communication, audio, and control systems—including generic 4-wire audio, 2-wire Partylines, two-way radios, telephone lines, and contact closures. Audio interface modules are supported by the MVX-16A Interface card, while the contact closure modules daisy-chain from the Eclipse frame’s CPU card. These auto-discovering interface modules mount within matrix or interface frames to simplify installation and ensure robust interoperability.
Frames

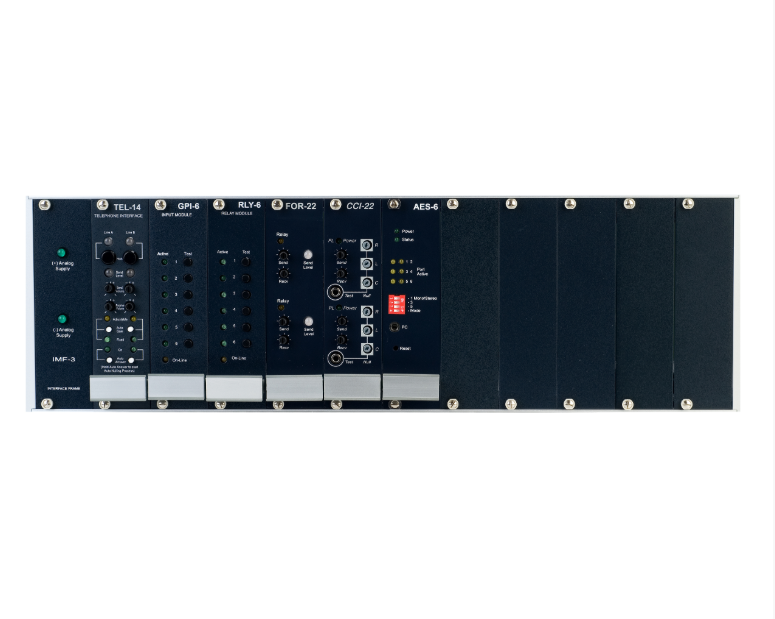

Interface Modules can be housed directly in Eclipse HX Median, Delta, and Delta-Lite frames, or within dedicated external interface frames. The high-density IMF-3 (3RU) holds up to 11 modules and utilizes the PSU-101 power supply, with support for a second unit for redundancy. For compact requirements, the IMF-102 (1RU) hosts two modules and combines an internal power supply and external redundancy connections into a single chassis.
