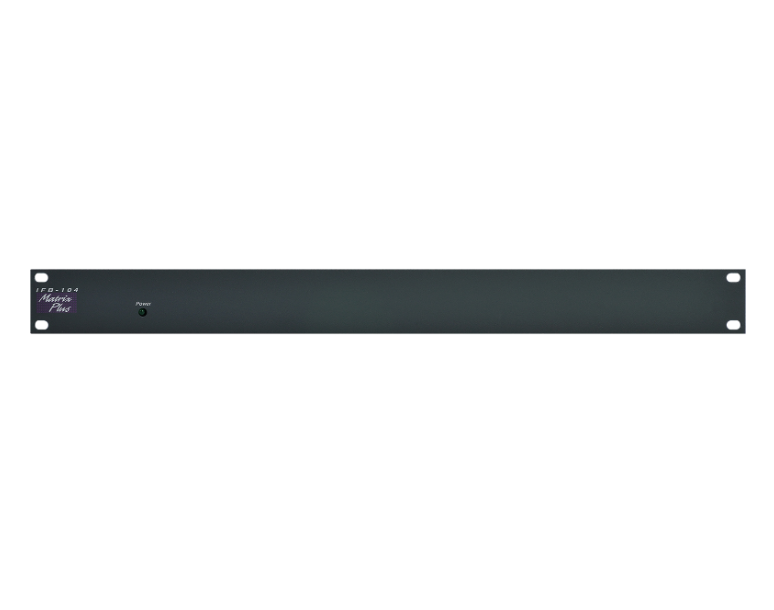

IFB-104
1RU 4-port breakout panel connecting matrix ports to talent receivers.
Description
Technical
Details
- Connects up to 4 IFB feeds to matrix ports
- Individual or multiple earbuds or headphones used directly from each port
- No external power required
- Rear-mounted wet/dry switch
- Transformer-coupled signal from port to XLR output
Item Code
IFB-104
Technical
Specifications
Indicators: \"Power-on\" LED
Connectors
Program Input: (4) 3-pin XLR female
To Matrix Frame: (4) RJ-45
Talent: (4) 3-pin XLR male
DC Power: (1) 3-pin XLR male; (1) 3-pin XLR female
Program Input
Type: Transformer isolated
Impedance: 600Ω bridging
Level: 0 dBv
Headphone Talent Receiver Outputs
Impedance: 600KΩ transformer balanced
Power: 1 mW into 600Ω
Line Input (2-pair talk to matrix)
Type: Transformer balanced
Impedance: 600KΩ
Level: 0 dBv nominal
Frequency Response: 100Hz-15kHz, +/-2dB
Environmental
Operating Temperature: 0º - 50ºC (32º - 125ºF)
Humidity: 20% to 90%, non-condensing
Dimensions
1.75 x 19 x 2in (HxWxD)
(89 x 483 x 51mm)
Weight
1.8lbs (0.82kg)
