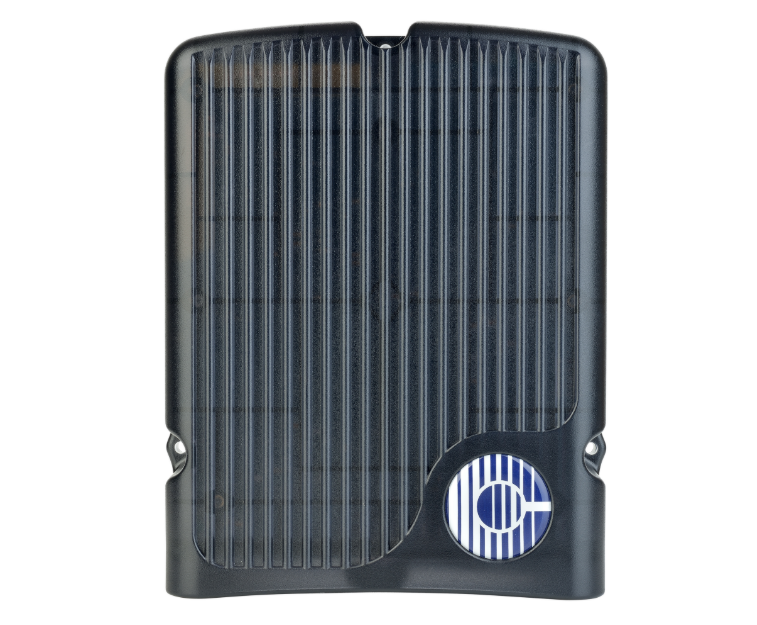

FSII-TCVR-19
The FSII-TCVR-19 is an active transceiver antenna for the FSII-BP19 or FSIC-BP19 beltpacks. The antenna can be locally powered or powered via the FSII base station or matrix on shorter connections (less than 1000 ft). The FSII-TCVR-19 has a mount for wall or microphone stand. A green status light is visible from either mounting orientations. When mixed with FSII-TCVR-24 antennas, a single radio space can support up to 65-90 FreeSpeak Icon and FreeSpeak II 1.9 GHz or 2.4 GHz beltpacks.
Description
- Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware
- Uses existing FSII base, E-QUE-HX cards, and FSII splitter hardware
- Supports 5 FSII-BP19 or FSIC-BP19 beltpacks per FSII-TCVR-19 transceiver
- Supports systems with up to 65-90 beltpacks when mixed with FSII-24-TCVRs
- Green LED status indicator on top and bottom
- Mic stand or wall mount orientation (metric and imperial threads)
- IP53 rating for wet and dusty conditions
