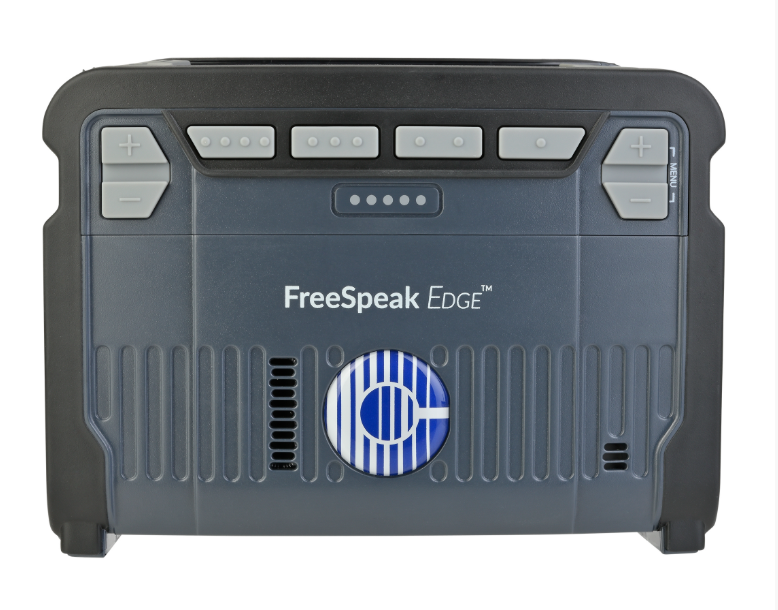

FSE-BP50
The FSE-BP50 is a rugged, water-resistant multi-channel beltpack that operates in the ISM license-free 5 GHz frequency range. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A & B encoders, individual level controls for C & D, and overall dedicated master volume control. The FreeSpeak Edge Digital Wireless RF Configuration Guide provides specifications, best practices and guidance for using the 5 GHz band and RF channels.
Description
Beltpack
- TFT color display
- 4 top buttons with individual level control
- 5 additional programmable buttons
- Rotary controls on both sides and up/ down level controls
- Master volume control on bottom
- Mic and speaker mode
- Built-in flashlight
- Drop-in and USB-C charging
Connectivity
- Functions with FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards
- 5 GHz radio frequency
- 20-27 radio channels (region specific)
- Robust radio link works in high multipath or reflective environments
- Dual redundant radios
- 2.4 Ghz radio; beltpack pairing and firmware updates over the air
- Low latency audio: < 35ms (60ms beltpack to beltpack)
- Wi-Fi coexistence
- 5 GHz Scanner Mode - built in scanning tool for selecting channels
- AES256 shared key encryption
Mechanical
- Curved shape fits to body
- IP54 rating for wet and dusty conditions
