E-MADI64-HX

Matrix Frame Architecture

• Eclipse CPU and Audio interface cards communicate on the frame's TDM backplane using a proprietary serial protocol that passes requests and instructions from the cards.
• Eclipse Audio interface cards make its audio inputs available on the frame's TDM backplane using PCM audio and receives from its other card inputs for mixing to its outputs.
• Eclipse CPU controller cards communicate externally to the configuration computer or control system via a serial network interface.
• Eclipse Audio interface cards communicate externally on their own dedicated interfaces. Externally each card is an individual clock domain and does not bridge to other cards.
• No network connections are shared or bridged between cards.

Matrix Frame E-MADI Card Capacity

Delta Lite: 2

Delta: 4

Median: 7

Omega: 7

Maximum number of each card type in matrix frame type. Not including bundled cards. For reference only. Customer's frame configuration should be validated for 1) timeslots / ports, 2) card power draw. See Eclipse HX Power Calculator.

E-MADI Card Capacity

Ports per card: 16, 32, 56, 64 @ 44.1, 48kHz - 32 @ 96kHz

Connectors

MADI: (2) BNC-F (In/Out) 75 Ohm, (1) SFP-Multimode SFP (Supplied)

Clock: (1) BNC-F (In) 75Ohm

Note: While mechanically identical, SFPs are designed with different properties for data rates, power and fiber cable type. Please refer to the Clear-Com SFP Compatibility Chart for compatible SFP transceivers.

Note: MADI SFP inputs have priority, switching to BNC if no SFP input is detected. BNC and SFP outputs are always active with identical outputs.

Controls and Indicators

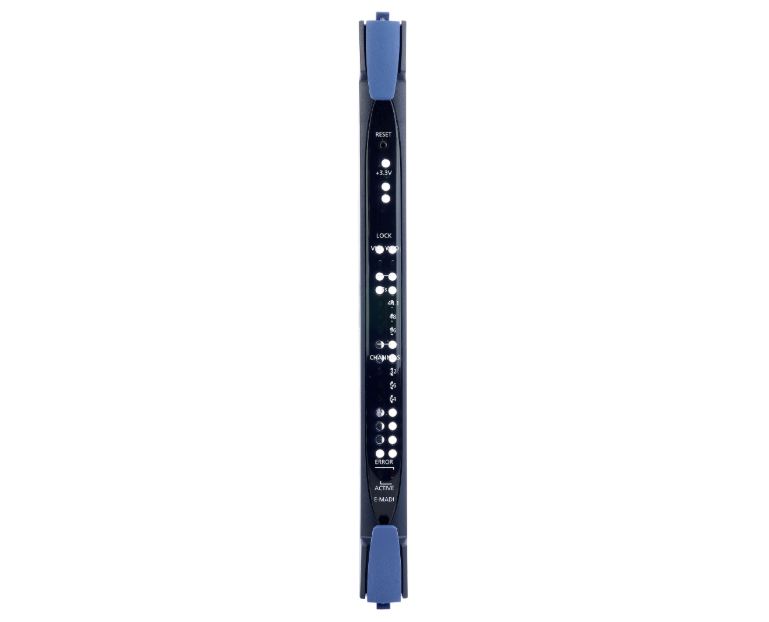

Front Card:

(1) Reset Button

(1) Voltage Presence LEDs

(2)  Synchronization Status LEDs

(3) Sample Rate LEDs

(3) Channel Configuration LED

(1) Frame Communication LED

(1) Hardware Error LED

Rear Card:

None

Audio

Audio parameters for the matrix frame's internal backplane.

Sample Rate: 48kHz

Resolution: 24bit

Frequency Response: 30Hz-22kHz ± 3dBu

Nomimal Level: 0dBu

MADI

AES10-2008

Channel Settings: 16, 32, 56 and 64

Sample Rates: 44.1, 48 and 96kHz (max 32 ports in 96kHz mode)

Resolution: 24 bits

Synchronization

Role: Leader (E-MADI-MK2 or higher) or Follower (MK1 only)

Word Clock: 44.1, 48 and 96kHz as per AES11-2009 Annex B

Video BiLevel: NTSC, PAL

Video TriLevel: 720P60, 720P59.94 720P50, 720P30, 720P27.97, 720P25, 720P24, 720P23.98, 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080P24, 1080P23.98, 1080I30, 1080I29.97, 1080I25, 1080I24, 1080923.98

Power

Current @ +3.3V: 1.9A

Environmental

Operating: +32° F to +113° F (0° C to +45° C)

Storage: -22° F to +158° F (-30° C to +70° C)

Humidity: 40-90%, non-condensing

Dimensions

Front Card:

0.78 x 10.44 x 12.99in (WxHxD)

(20 x 265 x 330mm)

Rear Card:

0.78 x 10.44 x 3.79in (WxHxD)

(20 x 265 x 96mm)

Weight

Front Card: 1.64lbs (0.75kg)

Rear Card: 9.2oz (0.26kg)
