E-FIB-HX

Matrix Frame Architecture

• Eclipse CPU and Audio interface cards communicate on the frame's TDM backplane using a proprietary serial protocol that passes requests and instructions from the cards.
• Eclipse Audio interface cards make its audio inputs available on the frame's TDM backplane using PCM audio and receives from its other card inputs for mixing to its outputs.
• Eclipse CPU controller cards communicate externally to the configuration computer or control system via a serial network interface.
• Eclipse Audio interface cards communicate externally on their own dedicated interfaces. Externally each card is an individual clock domain and does not bridge to other cards.
• No network connections are shared or bridged between cards.

Matrix Frame E-FIB Card Capacity

Delta Lite: 1

Delta: 2

Median: 2

Omega: 2

Maximum number of each card type in matrix frame type. Not including bundled cards. For reference only. Customer's frame configuration should be validated for 1) timeslots / ports, 2) card power draw. See Eclipse HX Power Calculator.

E-FIB Card Capacity

Ports per card:

TX: 16-224 configured to dynamically make available requested or reserved ports from the frame via fiber ring

RX: 16-224 configured to dynamically receive any of the 1952 ports from fiber ring

Cards per Ring: 16

Rings per Linked System: 2

Connectors

LAN: (2) SFP (Ring Topology) - Single-mode SFP (Supplied)

Note: While mechanically identical, SFPs are designed with different properties for data rates, power and fiber cable type. Please refer to the Clear-Com SFP Compatibility Chart for compatible SFP transceivers.

Note: Total installed fiber length exceeding >20km should be validated. Contact Clear-Com for further information.

Controls and Indicators

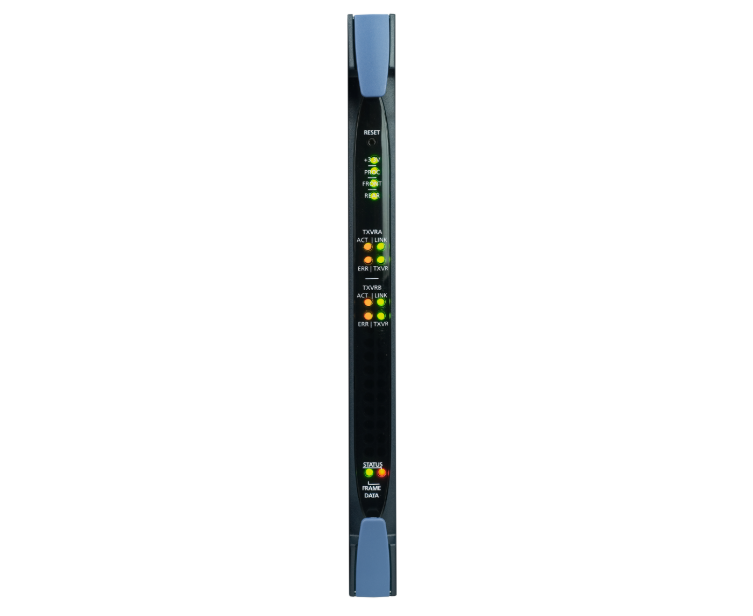

Front Card:

(1) Reset Button

(1) Voltage Presence LEDs

(1) Card Processor Status LED

(1) Front Card Status LED

(1) Rear Card Status LED

(4) Fiber Link/Activity LEDs

(4) Fiber Error LEDs

(1) Frame Communication LED

(1) Hardware Error LED

Rear Card:

(1) Power Presence LEDs

Audio

Audio parameters for the matrix frame's internal backplane.

Sample Rate: 48kHz

Resolution: 24bit

Frequency Response: 30Hz-22kHz ± 3dBu

Nomimal Level: 0dBu

Power

Current @ +3.3V: 1.9A

Environmental

Operating: +32° F to +113° F (0° C to +45° C)

Storage: -22° F to +158° F (-30° C to +70° C)

Humidity: 40-90%, non-condensing

Dimensions

Front Card:

0.78 x 10.44 x 12.99in (WxHxD)

(20 x 265 x 330mm)

Rear Card:

0.78 x 10.44 x 3.79in (WxHxD)

(20 x 265 x 96mm)

Weight

Front Card: 1.64lbs (0.75kg)

Rear Card: 9.2oz (0.26kg)
