Dynam-EC™
Details
Dynam-EC Live Assignment Software
- Audio Routing & Monitoring
- Direct Interface Ports
- Partylines
- IFB
Drag-&-Drop Operation
- Telephone Control
- Hook Control
- Dialing
- Line Status
- Phone Book
- Caller ID Alias Option
- Level Control & VOX State
- Live Monitoring – PFL/AFL
- Key Groups for Rapid Assignments
- Dynamic Alias Labeling
- Macro & Undo
Deployment
- Single or Multiple Frames
- Multiple Concurrent Instances
- User Customized Interface
- Palette
- Canvas
- Labeling
- Startup
Licensing Software Option
- Per Connection-Computer to Eclipse
- Site License Available
Eclipse Digital Matrix System
- Advanced Intercom System
- Scalable, Modular & Redundant
- Flexible Connectivity
- Effortless Networking
- Self-Contained System
Item Code
DYNAM-EC-1-HX: EHX Software; Dynam-EC, (1) user on (1) matrix
Licensed per D-EC connection to matrix. See Licensing section when D-EC is used with more than 1 user and/or matrix to determine number of licenses required.
DYNAM-EC-SITE-HX: EHX Software; Dynam-EC, site license
Site License for when 10 or more Dynam-EC licenses are required for one site
Product
Description
Description

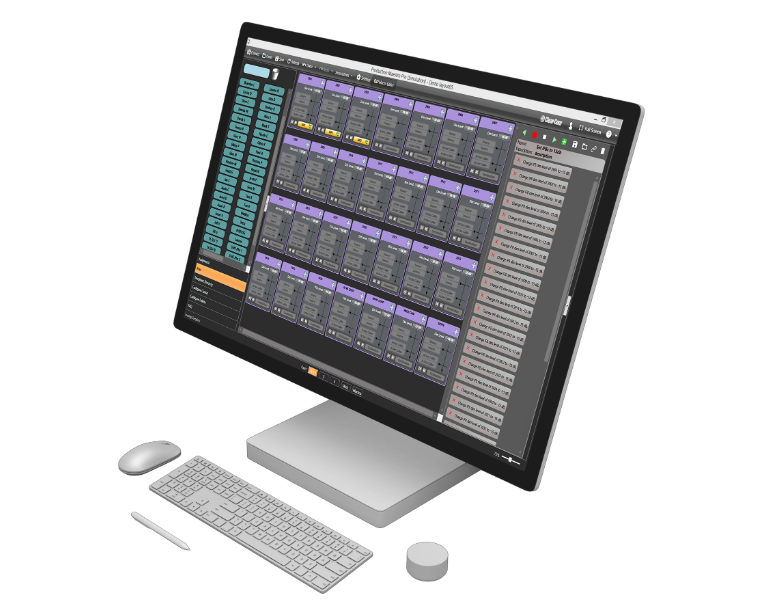

Dynam-EC is an optional software module for Eclipse HX systems that enables live drag-and-drop routing, labeling, and key assignments. It is specifically designed to help operators adapt quickly to the shifting requirements of dynamic environments.
User Customizable Interface
Dynam-EC provides operators access to all interface ports, Partylines, IFB, and Telephone lines configured on the Eclipse HX system. Users can organize these resources into clearly labeled Palettes and Canvases, allowing them to drag and drop ports to make or break audio routes in real-time.
Telephone Line Management
Dynam-EC enables the management of any telephone line within an Eclipse HX system. Operators can verify hook status, dial using an on-screen keypad or by dragging and dropping from a directory, monitor remote-end status, and disconnect calls—all from a user-customizable interface.
Temporary Alias & Key Groups
Dynam-EC allows any interface port, Partyline, IFB, or telephone line to be temporarily re-labeled with a custom Alias. These Aliases can be applied via drag-and-drop or triggered automatically by incoming calls from the directory, instantly updating the label on any assigned key system-wide.
Additionally, Eclipse HX Key Groups can be assigned as ‘bookmarks’ on user station keysets. This enables Dynam-EC operators to instantly configure keys anywhere in the system with the specific ports, Partylines, IFBs, and telephone lines required for the current operation.
Audio Level Control & Monitoring
Dynam-EC provides a comprehensive display of all interface port input and output level, alongside optionally configured VOX audio presence indicators. Levels can be adjusted instantly via a mouse scroll wheel or touchscreen fader.
For real-time verification and troubleshooting, operators can route selected interface inputs, outputs, Partylines, or IFBs to an Associated Monitor speaker. Additionally, the Port Viewer allows operators to quickly inspect all active routes feeding a specific system output.
Macro & Undo
Dynam-EC enables operators to intuitively record and manage Macros to automate repetitive tasks. These macros can be recalled later from a Dynam-EC Palette or triggered via an EHX-configured Control on a user station keyset. Additionally, macros can be utilized to restore previous system states.
For immediate corrections, any recent operation within Dynam-EC is automatically logged and available to be undone.
