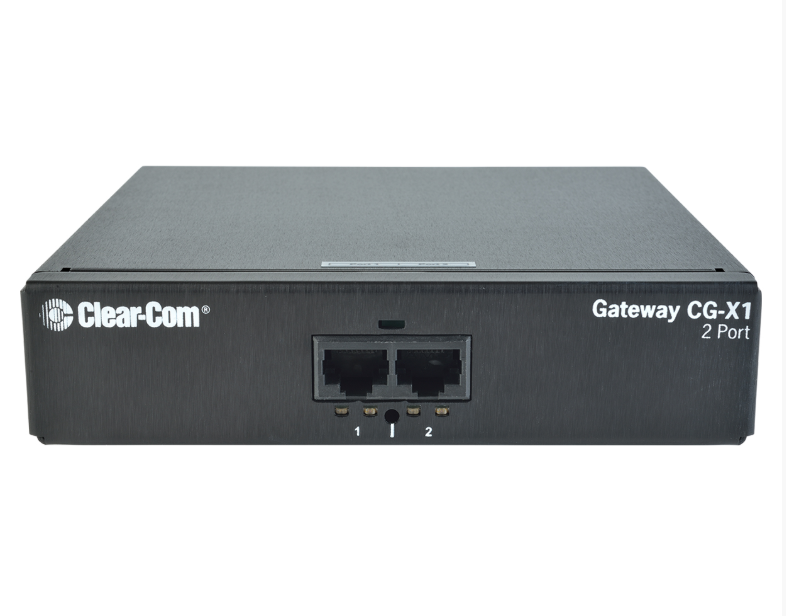

CG-X1
Details
- 4-wire connectivity (intercom, radio and audio sources)
- VoIP connectivity (SIP and RoIP)
- Digital radio connectivity (Digital Voice Systems' AMBE™ 3003 VoCoder technology)
- Radio Bridging: port-to-port, port-to-multi-port, Radio-over-IP (RoIP), analog-to-digital, digital-to-digital
- Radio Interfacing: trigger radios with 4-wire port signaling, DMR and P25 compatibility
- IP Interfacing: Voice-over-IP (VoIP), RoIP, Unicast, Multicast, SIP (8 assignable SIP accounts per IP module)
- Module design and highly configurable
Item Code
CG-X1-M4W1: X1 4-wire Gateway
CG-X1-MIP1: X1 IP Gateway
Technical
Specifications
4-Wire Audio Ports
4-Wire: Input/Output Levels: -16 to 7dBm @ 600Ω , adjustable in 0.1dB steps
Frequency Response: 5 to 3400Hz; +/-1 dB ref. to 1kHz
Isolation: >60 dB
Idle Noise: <20 dbrnC0
Input Impedance: 600Ω or 100Ω, software selectable each port
Output Impedance: 600Ω, true differential
Hybrid Return Loss: 25 dB minimum
Port Signaling
M-Lead Relay: Optical: Coupled MOS
Maximum Contact Voltage: 60V DC, 20V AC
Maximum Current: 50mA
E-Lead Input: Active High Input: Open circuit or >+1.8V DC
Active Low Input: Ground, negative voltage or <+0.32V DC
Clear-Com Signaling: Eclipse and HelixNet DTMF Signaling E&M Lead (COR & PTT) Signaling
Voice-Over-IP Module
IP Ports: Format: Supports 10Base-T and 100Base-T
Networking Stack: TCP/IPv4
Protocols: SIP, SDP, RTP, IPV67 and STUN (Simple Traversal of UDP through Network Address Translation)
Codecs: G.711 (fully compatible), G.726 (16/24/33/40 kbps), G.722, DVI4 (narrow/HD/Ultra HD), Linear PCM
SIP Accounts: 8 per module
Digital Radio Module
VoCoder: 3-channel
Digital Voice Systems: AMBE-3003™ Vocoder encode or decode AMBE™
Input/Output: Analog and Serial
Encode/Decode: P25, DMR
Interface and Connectors
LAN: RJ45 (port 2)
PC Configuration: USB Port Type B
4-Wire: RJ45
Power Supply
Switchable plug-in adapter with locking connector and IEC cord
Input Voltage: 85 – 264V AC; 100 – 240V AC; nominal
Output Voltage: 12V; 1.67A
MTBF (min.): 200,000 hours demonstrated
Temperature
Operating: 32° - +122°F (0° - +50°C)
Storage: -40° - +176°F (-40° - +80°C)
Humidity: 0 – 95%, non-condensing
Dimensions
5.4 x 1.4 x 6.4in (WxHxD)
(137.2 x 35.6 x 162.6mm)
