Eclipse HX specialty Interface Modules seamlessly connect Eclipse HX intercom systems to external communication, audio, and control systems—including generic 4-wire audio, 2-wire Partylines, two-way radios, telephone lines, and contact closures. Audio interface modules are supported by the MVX-16A Interface card, while the contact closure modules daisy-chain from the Eclipse frame’s CPU card. These auto-discovering interface modules mount within matrix or interface frames to simplify installation and ensure robust interoperability.

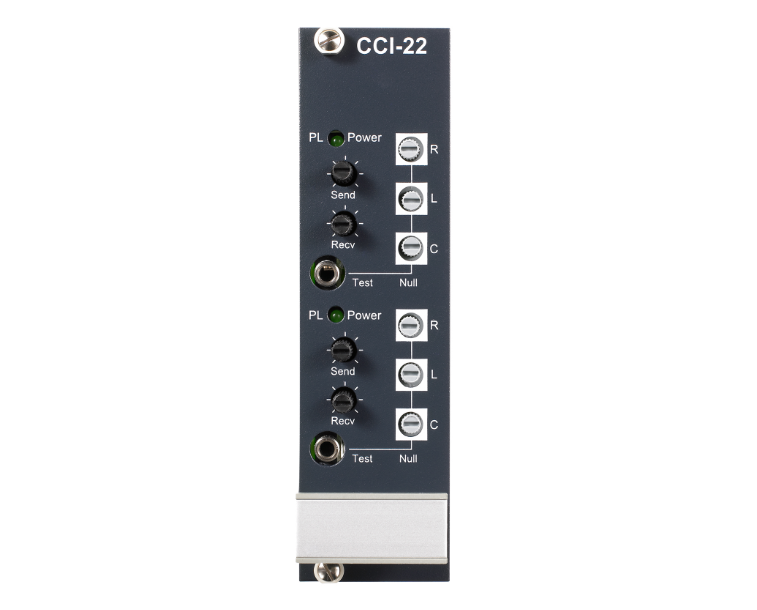

CCI-22 - 2-Wire Partyline
Connects two 2-wire full-duplex partyline circuits to the matrix. This interface supports Clear-Com signaling, features fully adjustable levels and nulling, and is powered directly by the external partyline circuit. It ensures compatibility with both Clear-Com and third-party 2-wire systems.
