CC-28

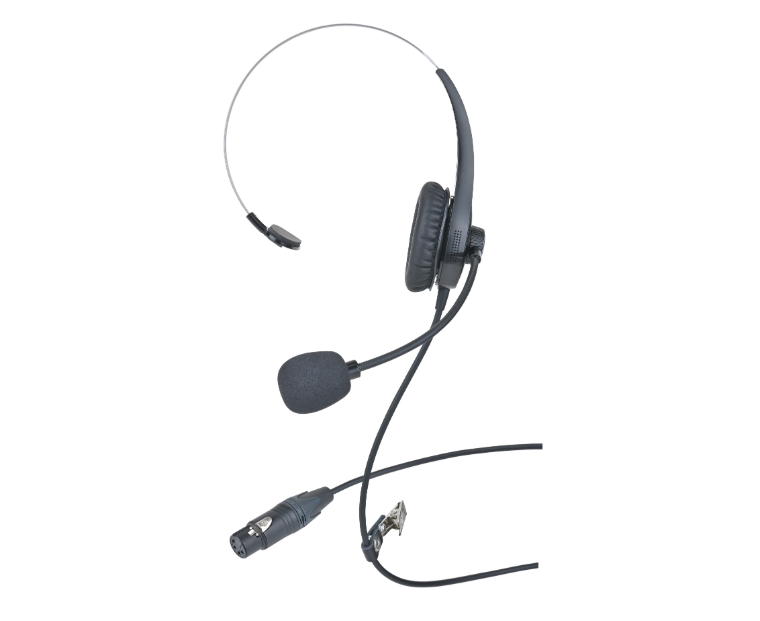

Single closed back, lightweight headset with cardioid dynamic microphones. View the CC-28 Regulatory Document for information on compliance.
Description
Technical
- Conception par-dessus la tête
- Positionnement flexible du microphone à col de cygne
- Coussinets d'oreille en similicuir
- Microphone dynamique
- Réponse en fréquence des écouteurs de 100 Hz à 14 kHz
- Interrupteur marche/arrêt de la rotation de la perche pour une coupure rapide du microphone
- Entièrement fonctionnel
Technical
Specifications
Headphone
Type: Closed-back
Driver: 27mm diameter
Frequency response: 100Hz- 14kHz
Sensitivity: 114dB ±3dB SPL@ 1kHz
Impedance: 320Ω ±20%; at 1kHz typical
Input Power: 100mW
Microphone
Element: Dynamic
Polar Pattern: Cardioid
Frequency Response: 200Hz-10kHz
Sensitivity: -61±3dB at 0dB =1V/1Pa, at 1kHz
Impedance: 200Ω ±20%; at 1kHz typical
Connector
XLR 4-pin female (Neutrik) Clear-Com wiring
Cabling: Screened and separately shielded microphone wires, cable not coiled
Cable length: 5ft (1.5m)
Environmental
Temperature: -10 ±3°C (14° to 37°F) to 55 ±5°C (131° to 41°F) for 48 hours
Humidity: 40 ±5°C (104° to 41°F) to 90-95°C (194° to 203°F) relative humidity for 48 hours
Dimensions
Dimensions Packaging: 6.3 x 8 x 2.4in (WxHxD)
(160 x 205 x 60mm)
Weight
3.1oz (88g) without conn
