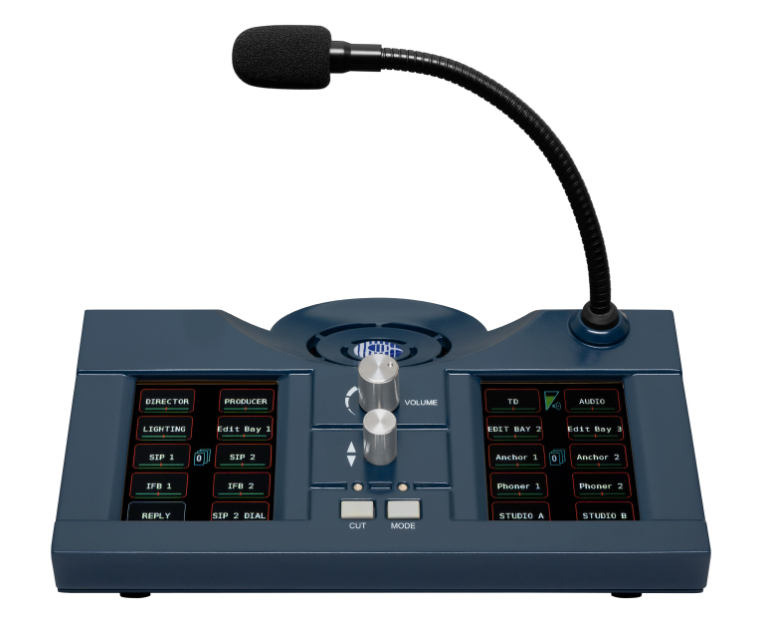

2X10 Touch 20-Key Touch Screen Desktop Panel
Details
• Shift key with 8 shift pages
• Assignable level control
• Loudspeaker/Mic CUT button
• 10-character color alpha-numeric displays
• Independent gain control per channel
• 2 In/2 Out GPI for foot switch
• Compatible with Eclipse HX® Delta, Median and Omega systems over 4-wire or IV Core to E-IPA-HX cards
Item Code
700-47-04-X4M: 20-Button Touchscreen IP Desktop with XLR-4 headset connector
700-47-04-X5F: 20-button Touchscreen IP desktop with XLR-5 headset connector
700-47-51: Spare In-line AC PSU
Technical
Specifications
Touchscreen Keys
Desktop: 20 fully programmable
(8x20 more via shift function)
Display: 10 character touch zone per key
Suitable Headset: Dynamic or Electret microphone & low impedance earpiece
Microphone: 180mm fixed gooseneck
Power
90-250 VAC, 50-60 Hz to a separate laptop style power supply
Panel is 12V DC powered
150mA @ 90V, 50mA @ 250V
Connectors
Matrix 4-Wire Connections (Clear-Com or Trilogy) & Ethernet: RJ45
Headset: XLR-4F or XLR-5M
Audio I/O: 15-pin, D type
GPI/O: 15-pin, D type
Dimensions
9 x 4.3 x 6.7in (WxHxD)
(230 x 110 x 170mm)
Weight
2.9Ibs (1.3kg)
