MSS1611-S

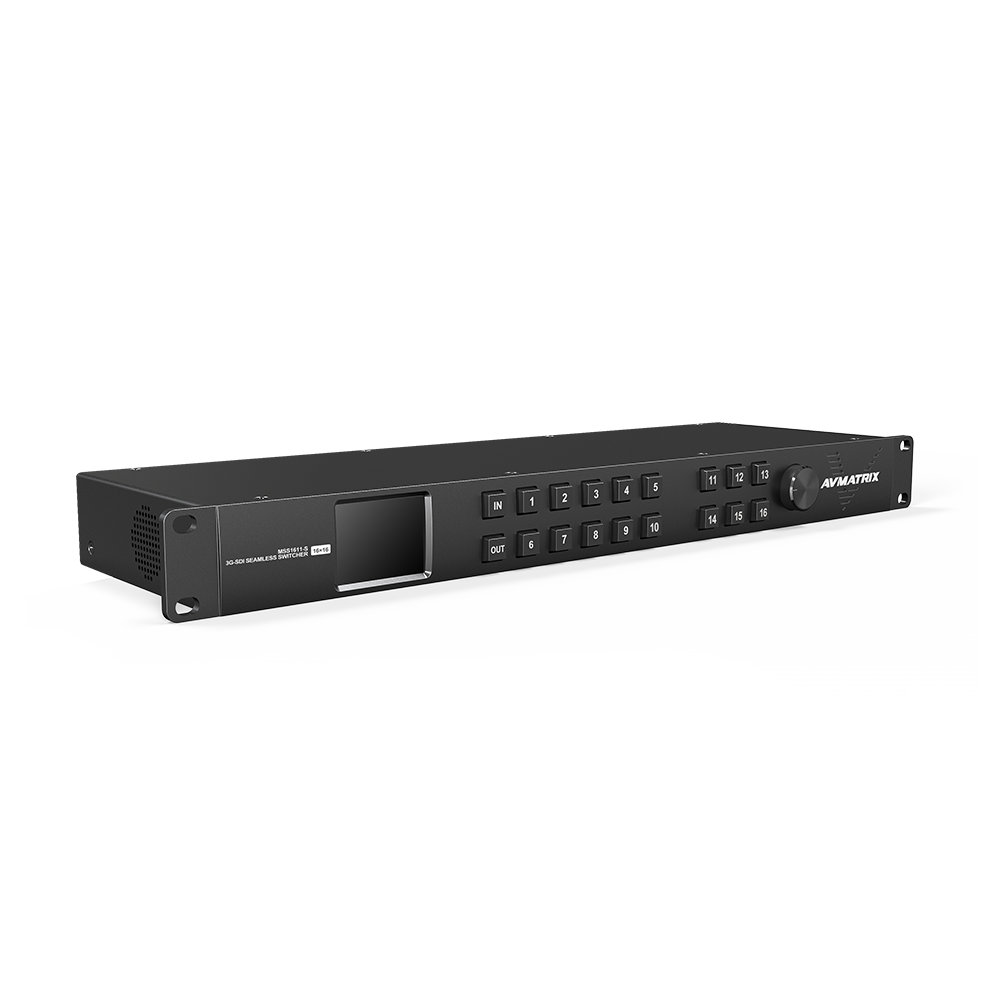

MSS1611-S is the perfect solution for a large broadcast project. The compact SDI routing switcher features 16 inputs and 16 outputs, redundant power connections and an elegant machined metal front panel with 2.2 inch LCD for routing label display. Routing can be performed by direct button selection and the spin knob controller. The 3G-SDI seamless matrix switcher supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 270Mbit/s and 3Gbit/s. Built-in frame synchronizer support simultaneous input of signal of different resolution frame rates, which can realize seamless switching without black screen. It can conveniently controlled by front panel button, PC software via LAN/RS-422.
