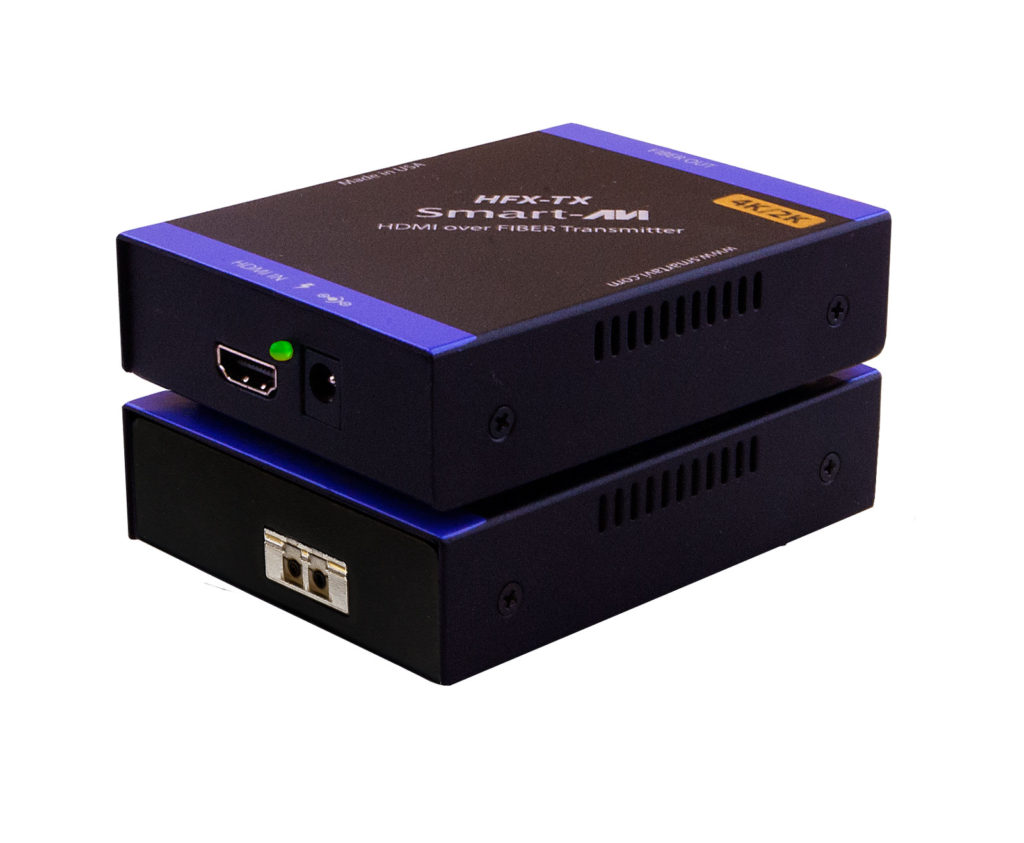

HFX
HDMI 4K ultra-HD signal extender up to 1,000 feet via fiber optic cabling.
Description
| Video | |
|---|---|
| Format | HDMI 1.4 and HDCP compliant |
| HDTV Resolutions | 480p, 720p, 1080i, 1080p/60Hz/48bit, 4Kx2K/30Hz |
| TV Resolution | 480i |
| Refresh Rate | Up to 130Hz |
| Wavelength | 850 nm |
| Bit Error Rate Performance | 1.00E-12 |
| Input Interface (TX) | HDMI Type A 19-pin Female TMDS |
| Output Interface (RX) | HDMI Type A 19-pin Female TMDS |
| Input Cable Length (TX) | Up to 40 ft. |
| Output Cable Length (RX) | Up to 40 ft. |
| Format | Dolby TrueHD, DTS-HD MA |
| Input Interface | HDMI (Integrated) |
| Output Interface | HDMI (Integrated) |
| Laser Output Power | Class 1; EN 60825-1 2007; EN 60825-2 A2 2010 |
| System | |
| Output Interface | Fiber Optic |
| Output Cable | Output Cable |
| Maximum Length | 1,000 feet (300 meters) |
| Other | |
| Power | External 100-240 VAC/5VDC2A @10W |
| Dimensions | 5”W x 1.125”H x 4.125”D |
| Weight | 1 lbs. |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temp. | 32-131°F (0-55 °C) |
| Storage Temp. | -4-185 °F (-20-85 °C) |
| Humidity | Up to 95% |
