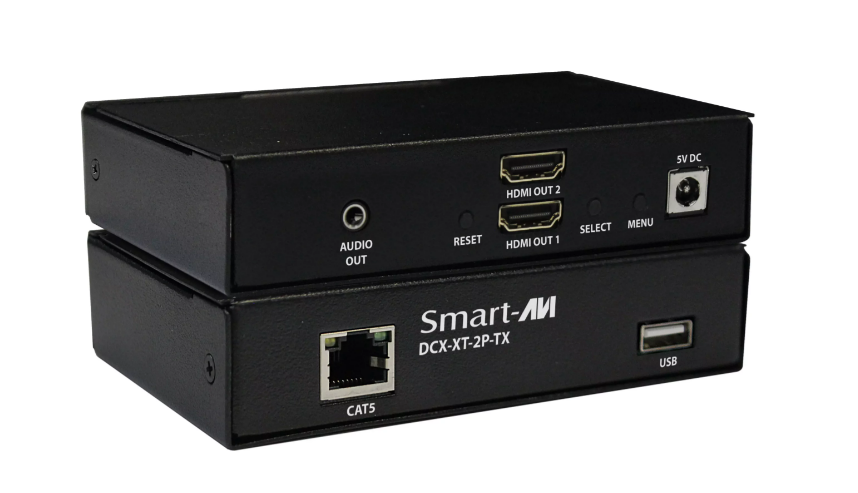

DCX-XT-2P

Dual-Head HDMI, USB 2.0 and Audio KVM CAT5/6 Extender.
Description
VIDEO
Format HDMI2.0
Video Resolution Up to 3840 x 2160 @ 30 Hz
Video Bandwidth Single-link 340 MHz (10.2 Gbps)
Input Interface (2) HDMI 19-pin (female)
Output Interface (2) HDMI 19-pin (female)
Max Output Distance Up to 20 ft
Equalization Automatic
Input TMDS Signal 1.2 Volts [peak-to-peak]
Input DDC Signal 5 Volts [peak-to-peak, TTL]
Data Rate 1.65 Gbps per color
AUDIO
Format Stereo
Input Interface (1) 3.5mm L/R jacket (female
Output Interface (1) 3.5mm L/R jacket (female)
USB
Input Interface (TX) (1) USB Type A
Output Interface (RX) (2) USB 1.1 Type A for KM Devices;
(2) USB 2.0 Type A Transparent
Keyboard and mouse Keyboard and mouse emulation
SYSTEM
Cable Requirements CAT5/5e/6
Maximum Length 100 m (330 ft)
OTHER
Power 100-240 VAC/ 5VDC @ 3A/15W
Dimensions 7.8” W x 1.15” H x 3.65” D
Weight 1 lb (.5 lbs per unit)
Approvals UL, CE, ROHS Compliant
Operating Temperature +32 to +104°F (0 to +40°C)
Storage Temperature -4 to 140°F (-20 to +60°C)
Operating Humidity 20% to 80% (non condensing)
Storage Humidity Up to 95% (No Condensation)
Compliance EMC FCC (Class A), CE (Class A), ICES-003
Environmental Compliance RoHS2 (CE)
Support Warranty 1-year
