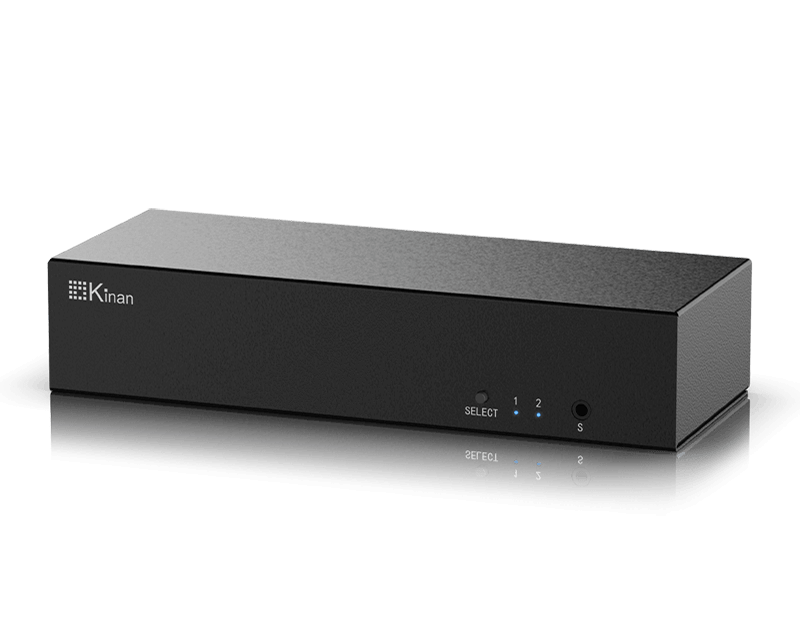

DPU202
2-Port USB3.0 DisplayPort KVM switch
Description
| Model | DPU202 | ||
| Computer Connections | 2 | ||
| Port Selection | Buttons, keyboard hotkeys, remote switching cable | ||
| Connectors | Console | Monitor | 1x DisplayPort |
| Keyboard/mouse | 2 x USB type A (White) | ||
| Microphone (Pink) | 1x 3.5mm audio port | ||
| Speaker (Green) | 1x 3.5mm audio port | ||
| KVM | Display input | 2x DisplayPort | |
| USB input | 2x USB3.0 type B (Ghite) | ||
| Microphone (Pink) | 2x 3.5mm audio port | ||
| Speaker (Green) | 2x 3.5mm audio port | ||
| USB3.0 port | 1x USB type A (White) | ||
| Indicator Light | 2x (Blue) | ||
| I/R Value | 12V/ 1A | ||
| Video Signal | 4096×2160@60Hz (4K DCI/60Hz) 3840×2160@60Hz (4K UHD/60Hz) |
||
| Power Consumption | 3W | ||
| Operating Temperature | 0-50℃ | ||
| Storage Temperature | -20-60℃ | ||
| Humidity | 0-80%RH, Non-condensing | ||
| Material | Metal | ||
| Weight | 0.6kg | ||
| Product Size (W×D×H) | 210mm × 79.2mm × 44mm | ||
| Package Size (W×D×H) | 260mm× 102mm× 179mm | ||
