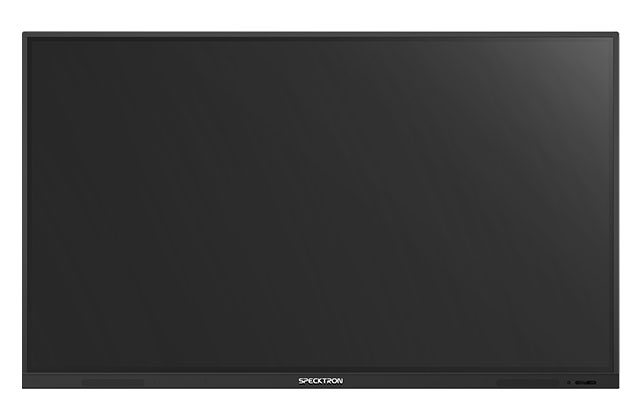

SPECKTRON UDX-86E
Specktron UDX-86E Interactive LED comes with multi-touch feature which is an effective presentations tool for sharing pictures, data, presentations, thoughts, ideas and business forecasts interactively.
Description
TECH SPECS
| Display | |
|---|---|
| Size | 86 inch |
| Screen Type | D-LED |
| Aspect Ratio | 16:9 |
| Display Area | 1895.04(H) x 1065.96(V)mm |
| Resolution Response | 3840(H) x 2160(V) |
| Time Refreshing | 8ms(Typ) |
| Frequency Display | 60Hz |
| Color | 1.07B (10bit) |
| Pixel Pitch | 0.4935mm x 0.4935mm |
| Brightness | 330 cd/m2 |
| Contrast Ratio（typ） | 1200：1 |
| Viewing Angle | 178° |
| Life Time | 50,000 Hours |
| TOUCH SYSTEM | |
| Sensing Type | Infrared touch technology |
| System | Windows 7/ 8/ 10 / Linux / Mac |
| Touch point | 20 points touch |
| Minimum object size | Single-touch Φ3mm and multi-touch Φ8mm |
| Response Time | ≺15ms |
| Accuracy | 2mm (over 90% Area) |
| Communication Mode | Full-speed USB (Driver free) |
| Interface | USB2.0 type B |
| Surface Hardness | Toughened Glass with Level 7 of Mohs Standard |
| Output Cordinates | 32768×x 32768 |
| DISPLAY CONNECTORS | |
| HDMI IN | 2 |
| VGA IN | 1 |
| PC- Audio IN | 1 |
| Digital Audio Out | 1 |
| USB 2.0 | 4 (including 2 USB ports in front) |
| USB 3.0 | 1 |
| USB Touch Output | 2 |
| AV IN | 1 |
| RS232 | 1 |
| Lan Port(RJ45) | 1 |
| ANDROID SYSTEM | |
| System Version | Android 7.0 |
| CPU | ARM Cortex A73 Dual Core CPU |
| GPU | Quintuple Core Mali 450MP |
| RAM | 2 GB |
| ROM | 16 GB |
