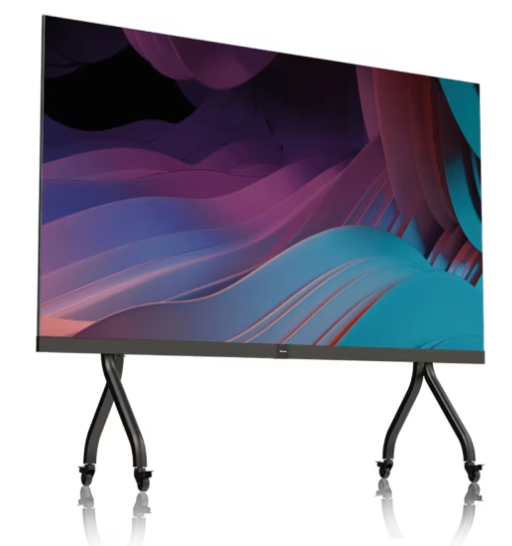

HAIO108DE

Physical
Pixel Pitch: 1.25mm
Pixel Configuration: Flip-chip COB (1 red,1 green,1 blue)
Screen Resolution (WxH): 1920 x 1080
Module Dimensions (WxH): 150 x 168.75mm
No. of Modules Per Screen (WxH): 16 x 8 (Total 128 Pcs LED Modules)
Screen Dimensions (WxHxD) *With Screen Frame: 2404 x 1437 x 31.5mm
Panel Dimensions (WxHxD): 600 x 337.5 x 31.5mm
Weight (per panel / screen): 4kg / 76kg
Pixel Density: 640,000 pixels/m2
Flatness of Cabinet (mm/inch): ± 0.05 mm
Cabinet Material: Die-cast Aluminum
Grey Level: 14 bits
Colour Gamut: >105% DCI-P3
Aspect Ratio: 16:9
Service Access: Front

Optical
Brightness (max./peak.): 1,000 / 1,200 nits
Brightness - Default (Adjustable): 600 (100-1,000) nits
Contrast Ratio: 25,000 : 1@10lux
Visual Viewing Angle (HxV): 165° x 150°
Brightness Uniformity: 98%
Colour Uniformity: ± 0.003 Cx,Cy
Processing Depth: 14 bits
Colour Temp - Default (Adjustable): 6500 K (2,000 ~ 9,300 K)

Electrical
Power Supply Voltage: 100-240V, 50/60Hz
Average Power Consumption (W/Screen): ≤560@1000nits / ≤400@600nits
Max Power Consumption (W/Screen): ≤1400@1000nits / ≤1000@600nits
Refresh Rate: 3,840Hz (typ.)

Connectivity
Input: HDMI(2.0) IN x3 (include 1 interal) / USB2.0 x1 / Type-C (not full function) x1 / RS-232 x1 / LAN x1
Output: SPDIF x1 / Audio Out x1

Operation Conditions
Operating Temp/Humidity: 0 - 40°C / 10% - 90%RH (no frost)
Storage Temp/Humidity: -20 - 40°C / 10% - 65%RH (no frost)
Expected LED Lifetime (typ): 100,000 Hrs

Speaker
Built-in: 10W x 2

System
OS: Android 9.0
CPU: CA73*4 1.3GHz
GPU: G52 MC1
DDR: 3GB
ROM: 64GB
WiFi: 2.4G & 5G
Bluetooth: 5.0
Language: Chinese / English (Default) / French / German / Spanish / Italian / Polish / Arabic / Russian

Package Solution 1 (Cardboard Box)
Packing Method: Cardboard Box for cabinets / modules / wall bracket & accessory
Packaging Dimensions (WxHxD): 1120 x 1690 x 768mm
Net / Gross Weight (w Wall Bracket): 76kg / 140kg

Certification
Standard Certification: CE, CB, FCC, cTUVus

Available Regions
EU
APAC
