32DM66D

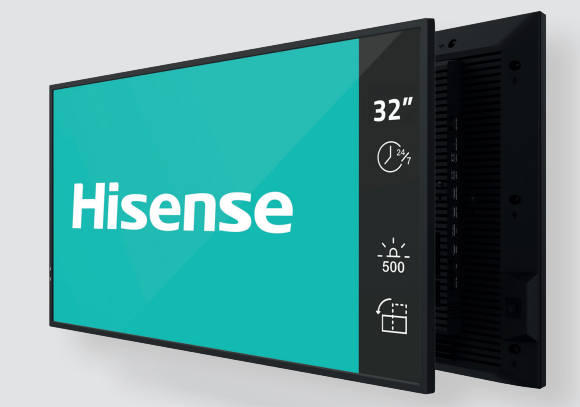

32” Full HD IPS Digital Signage Display - 24/7 Operation
Description

Panel
Backlight: DLED
Panel Type: ADS
Size: 32’’
Resolution: 1920 x 1080
Refresh rate: 60HZ
Color Depth: 16.7M (8 Bits)
Brightness: 500 nits (typ)
Contrast(typ): 1200:1 (typ)
Response Time(typ): 8ms
Viewing Angle: 178° / 178°
Color Gamut(typ): 72% NTSC
Haze: 25%
Orientation: Landscape & Portrait
Lifetime: up to 50,000hrs
Operation Hours: 7Day x 24Hour

Speaker
Built in speaker: 10W x 2

Environment
Operation Temperature: 0 - 40°C
Operation Humidity: 10% - 80% Non-Condensing

Connectivity
WI-FI: 2.4/5.0GHz dual,802.11a/b/g/n/ac
Bluetooth: BT5.1

Input:
HDMI(2.0) x 2
DP(1.2a) x 1
USB2.0(A) x 1
USB3.0(A) x 1
RS232(RJ45) x 1
LAN(RJ45) x 1

Output:
HDMI x 1
Audio(3.5mm) x 1
RS232(RJ45) x 1

Operating System
OS: Android 11

Physical
Bezel Color: Black
Set Dimension(W×H×D): 726 x 420.6 x 61.5mm / 25.6 x 16.6 x 2.4inch
Bezel width(T/L/R/B): 10.1mm(T/L/R), 10.3mm(B)
Net Weight: 4.6kg / 10.1lbs
Packing Dimension(W×H×D): 820 x 512 x 126mm / 32.3 x 20.2 x 5inch
Gross Weight: 6.5kg / 14.33lbs
VESA Mount: 200mm x 200mm

Certification
Standard Certification: CCC/CB/CE/FCC/cTUVus/UKCA/CEC/ERP
Safety: 62368-1
Environment: Energy Star 8.0
IP Rating: IP5X

What’s in the box
Quick Setup Guide
Warranty Card
Power Cord
Remote Controller
Batteries
RS232(in) Gender

Available Regions
EU
USA
APAC
SA
