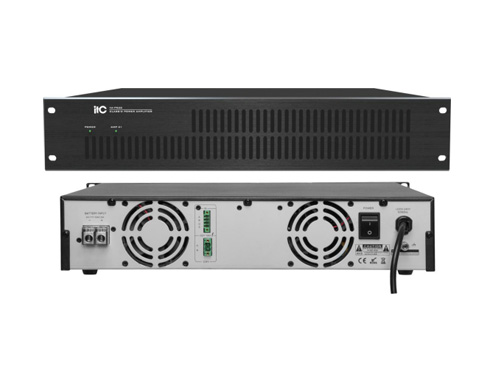

VA-P120
Class-D Digital Amplifier
Description
Specifications:
|
Model |
VA-P120 |
VA-P240 |
VA-P350 |
VA-P500 |
||||||
|
AC power |
||||||||||
|
Voltage |
~220-240V 50/60Hz |
|||||||||
|
Operating current |
0.7A |
1.4A |
2A |
2.8A |
||||||
|
DC power |
||||||||||
|
DC Power Input |
DC~24V; ±20% |
|||||||||
|
Operating current |
6.5A |
12.3A |
18A |
25A |
||||||
|
Power |
120W |
240W |
350W |
500W |
||||||
|
Power consumption |
150W |
295W |
425W |
605W |
||||||
|
Audio parameter |
||||||||||
|
Input method |
balance 385mV |
|||||||||
|
Frequency Response |
40Hz-20KHz±3dB |
|||||||||
|
Output |
100V Constant Voltage |
|||||||||
|
THD |
≤1% (Rated power distortion) 1KHz |
|||||||||
|
SNR |
≥90dB |
|||||||||
|
Operating Temperature |
5℃ ~ 40℃ |
|||||||||
|
Relative Humidity |
<95% |
|||||||||
|
Cooling way |
Fan Cooling Type |
|||||||||
|
Protection mode |
Delay, over heat, short circuit, overload protection |
|||||||||
|
Dimension |
484 x 478 x 88mm |
|||||||||
|
Net weight |
8.1Kg |
8.1Kg |
8.1Kg |
8.06Kg
|
||||||
