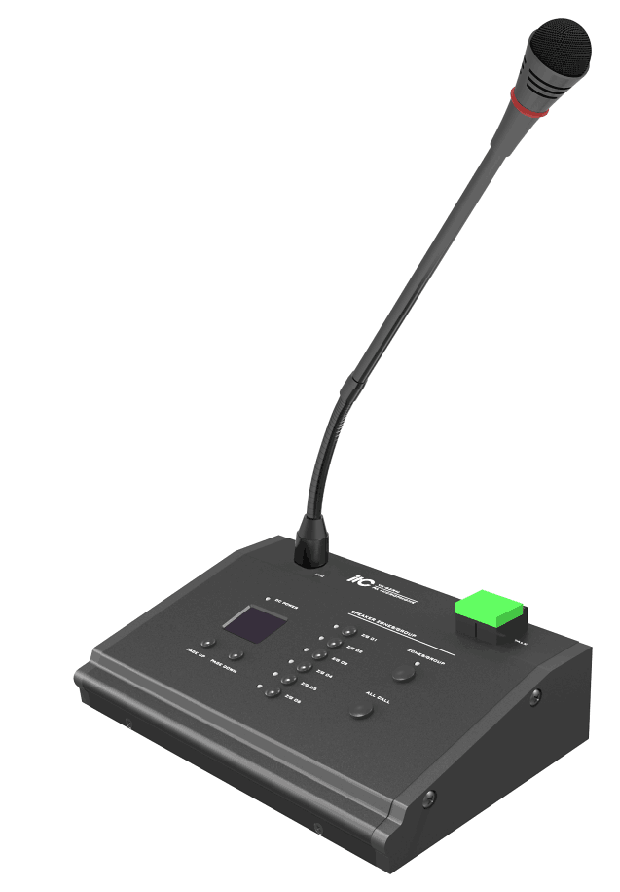

VA-6ZRM
Voice Evacuation Microphone
Description
Features:
* Support 40 zones, 6 group button paging.
* Support zone configuration to any grouping.
* Support consecutive paging for any controller of 1 ~ 6 zones.
* Support line input / microphone output. And output volume is adjustable.
* Remote microphone paging priority can be configured.
* Display the zone status of the associated controller in real time.
* upport 24 DC power supply, POE power supply.
* The system supports up to 28 remote microphones.
Performance index
Analog audio
| MIC microphone input | |
| Sensitivity | 10MV±1mV |
| Frequency response | 200Hz~10kHz |
| Input impedance | ≥1kΩ |
| LINE unbalanced line audio input | |
| Sensitivity | 775MV±50mV |
|
Frequency response
|
80Hz~16kHz |
| Impedance | ≥10kΩ |
Balanced line output
| lAmplitude | 1000MV±50mV |
| lDistortion | <0.3%, 1 kHz |
| lFrequency response | 200Hz~10kHz |
| lOutput impedance | 470Ω |
| lSNR | >60dB |
Communication
| CAN interface |
| lRemote MIC console CAN interface |
| lBaud rate 100Kbps |
| lSupport up to 32 remote MIC consoles |
Mechanical indicators
| Size (L × W × H) | 197 * 115 * 44 mm |
| Net weight | About 1.2KG |
| Installation | Desktop or 19-inch cabinet |
| Color | Black |
Environmental requirements
| l Operating temperature | +5°C ~ +40°C |
| l Storage temperature | -20 ° C ~ +70 ° C |
| l Relative temperature | <95% |
