VA-6200MS
Specifications:
|
Model |
VA-6200MS |
|
Rated Power Output |
500W |
|
Output Voltage |
100V |
|
MIC1-2 Input Distortion |
<1% (output rating), 1KHz |
|
MIC1-2 Input Frequency Response |
80Hz~20KHz |
|
MIC1-2 Input Sensitivity |
5mV/6/600Ω |
|
MIC1-2 Input SNR |
>65dB |
|
AUX3-6 Input Distortion |
<1% (output rating), 1KHz |
|
AUX3-6 Input Frequency Response |
80Hz~20KHz |
|
AUX3-6 Input Sensitivity |
350mV/10kΩ |
|
AUX3-6 Input SNR |
>70dB |
|
Spare Amplifier Input |
100V |
|
Spare Amplifier Audio Signal Output |
±385mV (balanced output) |
|
Alarm Input |
8 |
|
Alarm Output |
8 |
|
Zone Input |
8 |
|
24V Relay Output |
8 |
|
Short Circuit mode |
short circuit |
|
Type of cooling |
air-cooled |
|
Guard mode |
delay/overheat/ short circuit/ overload |
|
Output Volume Control |
6 |
|
Supply Voltage |
~ 220V-240V, 50/60Hz |
|
Maximum Current |
3A |
|
Fuse Size |
250V/5A, slow type |
|
Spare Voltage |
24V DC, ±20% |
|
Maximum Current |
30A |
|
Maximum Power Consumption |
600W |
|
Dimensions (L x W x D) |
484 x 88 x 353mm |
|
Weight |
10.5kg |
|
Installation method |
Desktop or 19" cabinet |

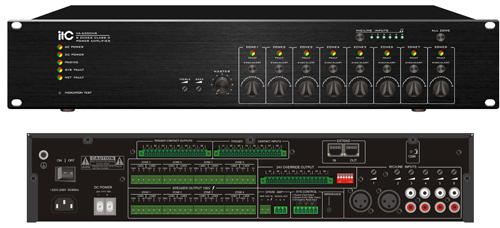

Back Panel
Connectors
① Power switch
② AC power outlet
③ DC 24V input interface
④ Fire alarm trigger output node
⑤ Fire alarm trigger input node
⑥ 3 wire power amplifier 100V output
⑦ 485 Online interface
⑧ DC 24V output
⑨ Unplug code switch from computer address
⑩ Backup power amplifier 100V input
⑪ Backup power amplifier signal output
⑫ SYS CONTRCL:
1) System fault output, When something goes wrong, This port will be closed
2) Fire alarm output, When the fire alarm is triggered, This port will be closed
3) Emergency reset input, Short circuit interface, Fire alarm will be reset
⑬ Impedance correction button
⑭ 6 way background music input
