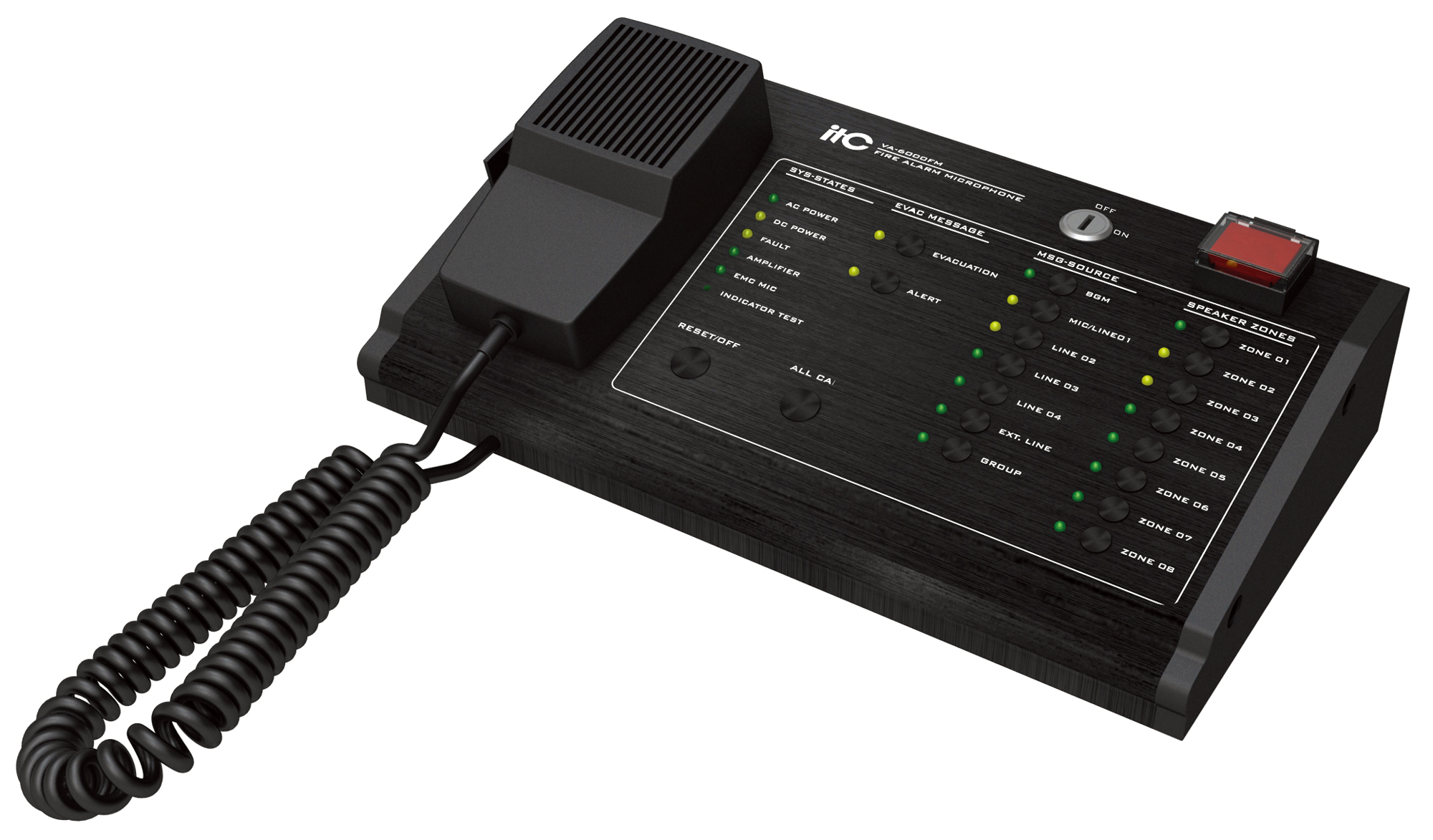

VA-6000FM
Fireman Microphone
Description
Specifications:
|
Model |
VA-6000FM |
|
DC Supply |
|
|
Power Supply |
24V DC, ±20% |
|
Maximum Current |
0.1 A (including extension unit) |
|
Power Comsumption |
2.4W (including extension unit) |
|
Performance Index |
|
|
Parallel Signal Output |
|
|
THD |
<1% (rated output power),1KHz |
|
Frequency |
80Hz~16KHz |
|
Sensitivity |
500mV |
|
Impedance |
10KΩ |
|
S/N Ratio |
>70dB |
|
Line In |
|
|
THD |
<1% (rated output power), 1KHz |
|
Frequency |
80Hz~16KHz |
|
Sensitivity |
350mV |
|
Impedance |
10KΩ |
|
S/N Ratio |
>70dB |
|
Microphone |
|
|
Sensitivity |
5mV |
|
Impedance |
600Ω |
|
Mechanical Index |
|
|
Size ( L x W x D ) |
256 x 52 x 149mm |
|
Weight |
1.5Kg |
|
Mounting |
Desktop or 18 inch cabinet |
|
Color |
Black |
|
Environment |
|
|
Operation Temperature |
+5℃ ~ +40℃ |
|
Storage Temperature |
-20℃ ~ +70℃ |
|
Relative Temperature |
<95% (no condensation)
|
