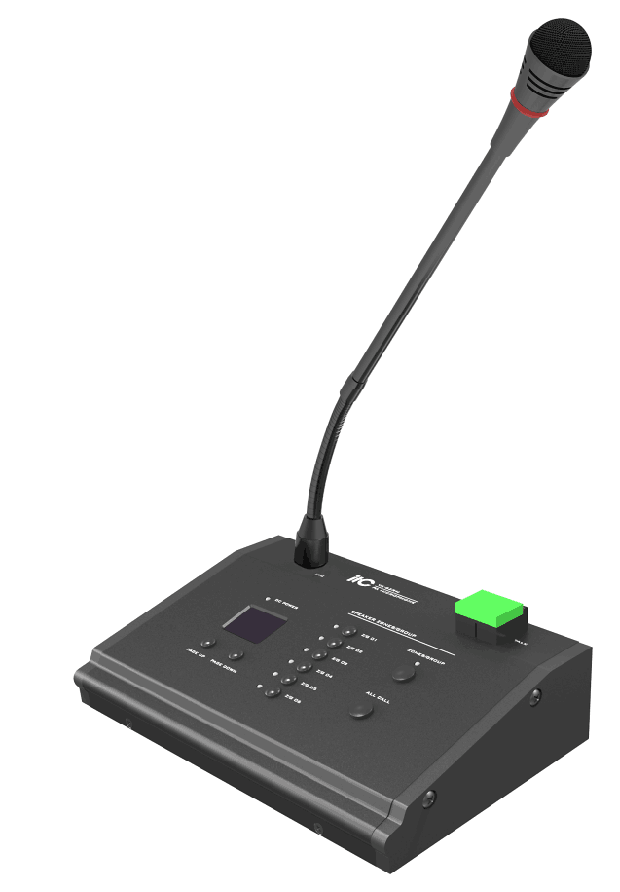

VA-6ZRM
Specifications:
|
Model |
VA-6000MA |
|
Electrical Specifications |
|
|
AC Power Supply |
|
|
Voltage |
~220-240V 50/60Hz |
|
Maximum Current |
Less than 0.2A |
|
Fuse Specification |
250V/2A, slow type |
|
Power |
36W |
|
DC Power Supply |
|
|
Voltage |
24V DC, ±20% |
|
Maximum Current |
1.5 A |
|
Performance Index |
|
|
Emergency Microphone |
|
|
Sensitivity |
5mV |
|
Impedance |
600Ω |
|
Line input |
|
|
Distortion |
<1%(rated output power),1KHz |
|
Frequency |
80Hz~20KHz |
|
Sensitivity |
350mV |
|
Impedance |
10KΩ |
|
S/N Ratio |
>70dB |
|
Record Output |
|
|
Distortion |
<1% (rated output power),1KHz |
|
Frequency |
200mV |
|
Sensitivity |
>70dB |
|
Contact Output |
|
|
Fault Relay Output |
Short circuit, no voltage |
|
Fire linkage Relay Output |
Short circuit, no voltage |
|
8 Relay Programmable Output |
Short circuit, no voltage |
|
Programmable DC24V Power Outputs |
+DC 24V, 1A |
|
8 Programmable Trigger Input |
|
|
Level Model |
highest 3.3V |
|
Short Circuit Mode |
Short circuit, no voltage |
|
Short Circuit Input |
|
|
Fire Reset Input Contact |
Pulse≥0.5S, no voltage |
|
Voice Message |
|
|
Data Format |
MP3 or WMA format |
|
Storage Type |
SD |
|
Information Capacity |
65535 |
|
(MAX programme of 100 songs) |
|
|
Storage Time |
>10 years |
|
Log Information |
|
|
Data Format |
HEX |
|
Storage Type |
Nand Flash |
|
Information Capacity |
2000 |
|
Storage Time |
>10 years |
|
Mechanical Index |
|
|
Size (L x W x D) |
484 x 132 x 449 mm (19 inches wide, 3U) |
|
Weight |
About 8.0 Kg |
|
Installation |
Desktop or 19 inch cabinet |
|
Color |
Black |
|
Environmental Requirements |
|
|
Operating Temperature |
+5℃ ~ +40℃ |
|
Storage Temperature |
-20℃ ~ +70℃ |
|
Relative Temperature |
<95%
|
