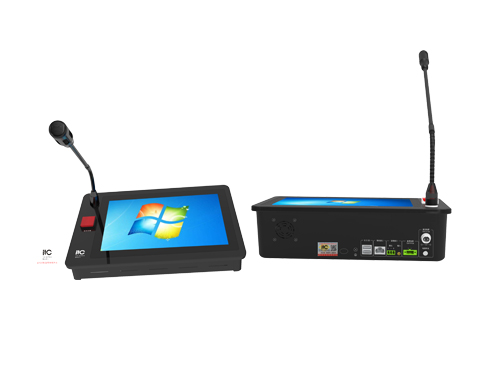

VA-6504 (BA31)
.jpg)
Specification:
|
Model |
VA-6504 (BA31) |
|
Network interface |
Standard RJ45 input |
|
Communication protocol |
Compatible with DHCP, TCP, UDP, ICMP, IGMP, ARP, etc. |
|
Transmission rate |
100Mbps |
|
Screen size |
10.1 inches |
|
Screen resolution |
1280*800 |
|
Viewing angle |
178° full viewing angle |
|
Screen type |
Capacitive touch screen |
|
CPU |
Intel Quad Core, clocked at 2GHz |
|
RAM |
4G |
|
Hard disk capacity |
64G |
|
MIC sensitivity |
-34±2dB (0dB=1V/Pa, at 1KHz) |
|
Line in sensitivity |
-6.9dBu |
|
MIC type |
Cardioid Condenser Electret Microphone |
|
Built-in speaker impedance |
4Ω |
|
Built-in speaker rated power |
1.5W |
|
THD |
THD+N≤1% |
|
Frequency response |
80Hz~16KHz +1/-3dB |
|
SNR |
Line out>= 70dB (A); Mic>= 60dB (A) |
|
Working temperature |
-10℃~55℃ |
|
Relative humidity |
20%~80%, no condensation |
|
Total power consumption |
≤45W |
|
Standard input DC power |
DC12V/5A |
|
Dimension |
300×190×97mm |
|
Net weight |
2.74Kg |
|
Installation method |
Desktop
|
