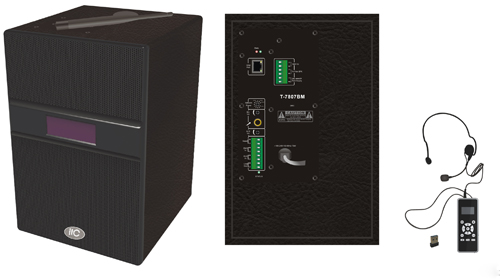

T-7807B
Specification:
|
Model |
T-7807B |
|
Network interface |
Standard RJ45 input |
|
Transmission rate |
100Mbps |
|
Communication protocol |
TCP/IP, UDP, IGMP(multicast), IETF SIP |
|
Audio format |
Mp3, WMA, WAV |
|
Audio mode |
16-bit CD sound quality |
|
Sampling rate |
8K~48KHz |
|
AUX input |
1 group |
|
AUX sensitivity |
350mV |
|
EMC input |
1 group |
|
EMC sensitivity |
775mV |
|
MIC input |
1 group |
|
MIC sensitivity |
5mV |
|
Line out output |
1 group |
|
Line out level/impedance |
1000mV/470Ω |
|
Power consumption |
130W |
|
Standby power consumption |
<3W |
|
Frequency response |
Line out: 80Hz~16KHz -3dB/+1dB |
|
SPKOUT: 80Hz~16KHz -3dB/+1dB |
|
|
THD |
≤1% |
|
SNR |
>65dB |
|
Power supply |
~190-240V 50-60Hz |
|
Protection circuit |
DC output, overload, high temperature, short circuit protection |
|
Working temperature |
5℃~40℃ |
|
Working humidity |
20%~80% relative humidity, no condensation |
|
Size |
215×200×300mm (L×W×H) |
|
Net weight |
7.5Kg
|
